Virio: Vertical balancing machines for disc-shaped rotors up to 300 kg
Vertical balancing machines in the Virio series balance disc- and pot-shaped rotors without their own shaft journals, ranging from a few grams to 300 kg. All Virio machines are permanently calibrated, allowing you to switch from rotor to rotor without a calibration run. Available in seven models, they precisely balance individual rotors and small batches in workshops, laboratories, repair facilities, and manufacturing environments.
What is a vertical balancing machine?
A vertical balancing machine, also known as a vertical machine, determines the magnitude and angular position of the unbalance of a rotor mounted on a vertical spindle. Using these measurements, you can correct the unbalance precisely at the correct location.
Unbalance occurs when a rotor’s mass is unevenly distributed around its axis of rotation. During operation, this generates centrifugal forces, vibrations, and bearing loads. On the vertical machine, you clamp the rotor directly onto the spindle, usually with an auxiliary tool. This makes it suitable for rotors that do not have their own shaft journals. We offer customized solutions tailored to your specific requirements.
The right spin for your rotors

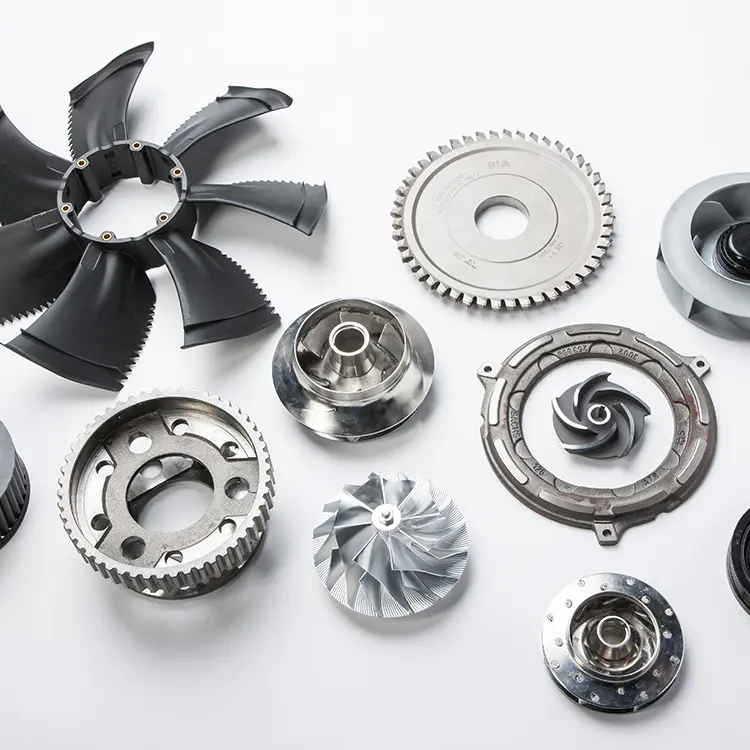

What types of rotors do you balance on the Virio?

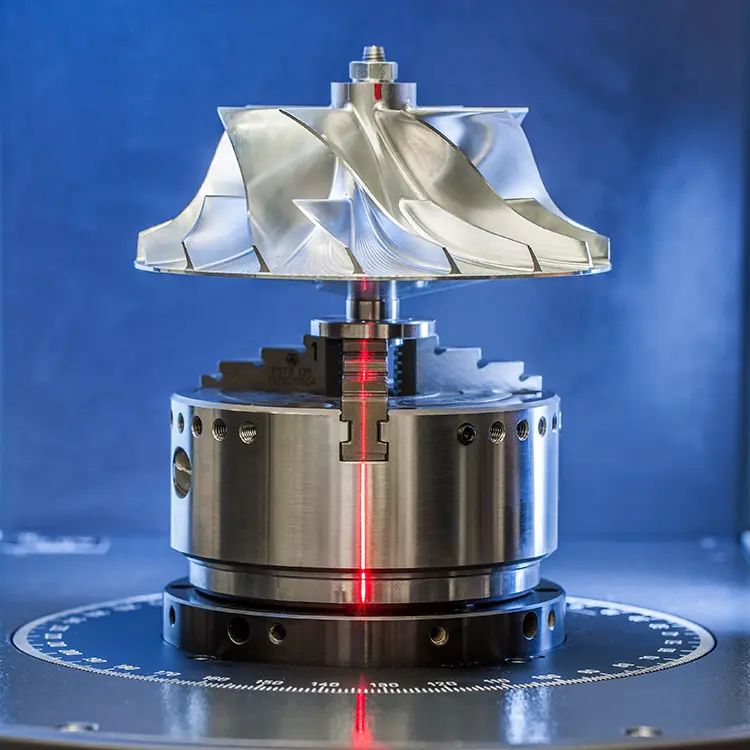

Why doesn’t the Virio require calibration runs?
How flexible is the Virio?
Advantages of Virio
The Virio combines universal applicability with permanent calibration, simple operation, CE-compliant safety equipment, Schenck measurement technology, and an expandable modular system.
Universally applicable
The Virio balances all workpieces without their own shaft journals up to a rotor weight of 300 kg.
Time-saving
Thanks to permanent calibration, no additional rotor-specific calibration runs are necessary.
Easy to operate
Logical workflows keep your learning curve low, even for complex balancing processes.
High safety standards
You work with CE-compliant protective equipment that meets the latest standards.
With top-quality measurement technology
The CAB 920 measuring device provides you with precise data as a high-end solution.
Flexibly adaptable
The modular system and versatile accessories allow you to easily expand your Virio.
Versions of the Virio series
Virio
Manually
Vertical
Dynamic
Virio 05
The Virio 05 is the expert for small, lightweight rotors such as vertical fans, pump impellers, compressors, tools, or flywheels weighing up to 500 grams. It is your flexible partner in the workshop and laboratory, in the repair sector, or even in small-batch production. All control buttons are clearly arranged and easily accessible.
- Maximum rotor weight: up to 500g
- Maximum rotor diameter: up to 220 mm
- Maximum rotor height: up to 150 mm
- Plane spacing: up to 20mm
Virio
Manual
Vertical
Dynamic
Virio 5
Virio 5 is the vertical balancing machine for small, lightweight rotors such as small fans without their own drive, centrifuges, deflection wheels, coupling elements, or rotating paint nozzles. The balancing machine can be set up on a table and operated while standing or sitting. The balancing unit, measuring device, and control box are located on a base plate. All control buttons are clearly arranged, ergonomic and easily accessible.
- Maximum rotor weight: up to 5 kg
- Maximum rotor diameter: up to 300 mm
- Maximum rotor height: up to 250 mm
- plane spacing: up to 40 mm
Virio
Manual
Vertical
Dynamic

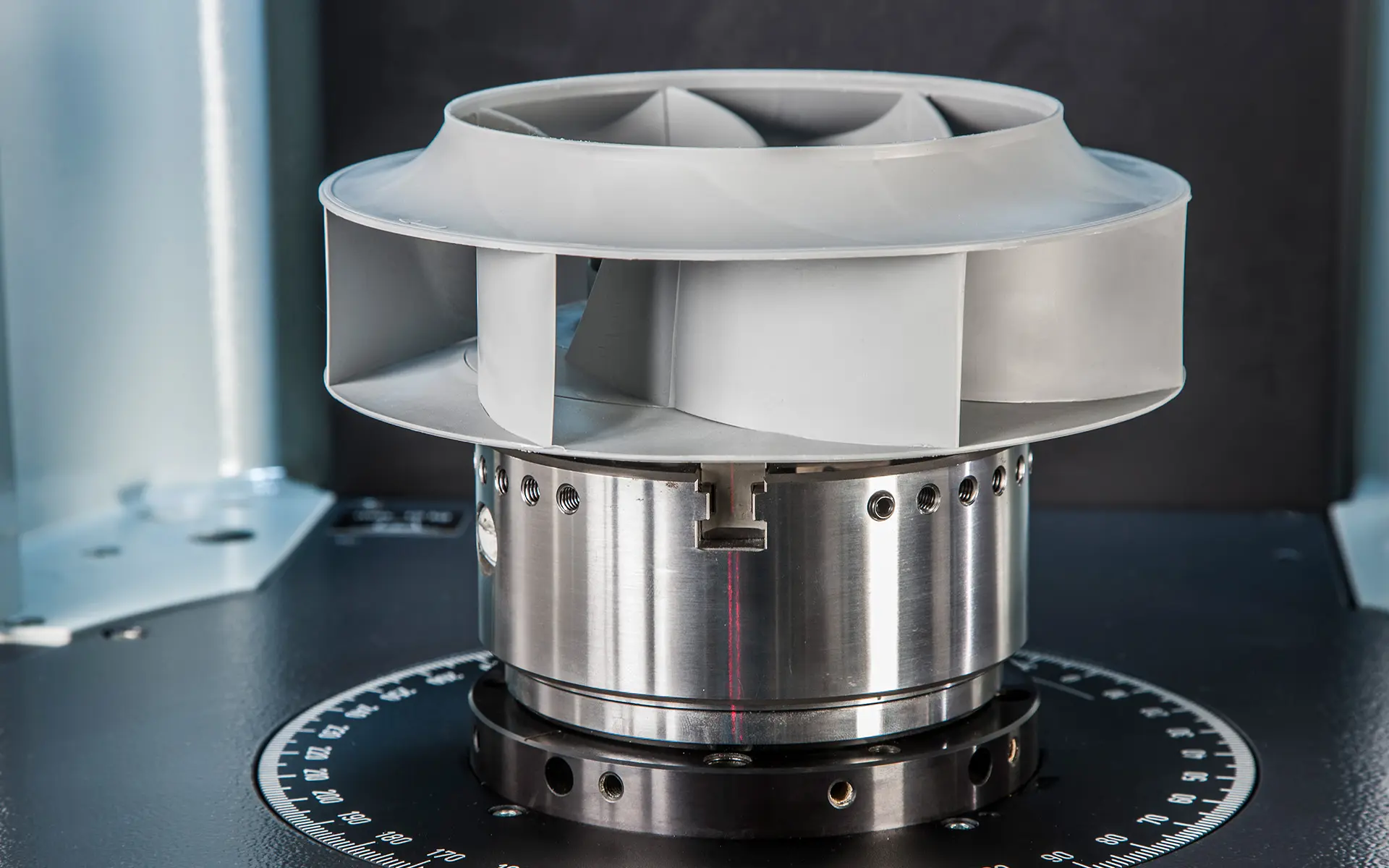

Virio 15
Just as compact as it is precise: Virio 15 is the ideal choice for balancing disc-shaped or pot-shaped workpieces such as flywheels and pulleys, pump impellers, fans, and transmission components weighing up to 15 kg and with a diameter of up to 400 mm.
- Maximum rotor weight: up to 15 kg
- Maximum rotor diameter: up to 400 mm
- Max. tool length including holder: up to 600 mm
- Spindle speed: 1200 min⁻¹
Downloads
Virio
Manual
Vertical
Dynamic
Virio 10 - 300
Whether in workshops and repair shops or in series production: Virio 10, Virio 50, Virio 100, and Virio 300 are high-precision balancing machines for a wide range of rotors up to 300 kg. All models can be set up directly on the workshop floor without a foundation, quickly put into operation, and just as quickly relocated.
- Maximum rotor weight: From a maximum of 10 kg for the Virio 10 to a maximum of 300 kg for the Virio 300
- Maximum rotor diameter: up to 810 mm
- Maximum rotor height: up to 450 mm
- FU three-phase drive: 1.5 kW to 4.0 kW
Which vertical balancing machine is right for your rotors?
The Virio model that’s right for you depends primarily on the weight, diameter, and height of your rotors. You can balance light rotors weighing up to 5 kg on the Virio 05 and Virio 5 benchtop machines, rotors weighing up to 15 kg on the Virio 15, and heavy rotors weighing up to 300 kg on the Virio 10 through 300.
To help you choose, we also need to know the number of balancing planes, the desired balancing method, and the required balancing accuracy. Because the Virio series is built on a modular design, we can put together a customized solution for you.
As the global market leader in balancing solutions with more than 100 years of experience, we provide you with personalized advice. The Virio stands for quality and precision “made in Germany.” Our sales team remains your point of contact even after your purchase.
What technical features characterize the Virio?
Virio 05/5
- compact benchtop machine for flexible installation
- servo drive with digital speed selection and monitoring
- Safe Control system – continuous machine monitoring, permanent monitoring in the event of service, and very fast fault diagnosis
- fast and error-free machine setup using the integrated line laser
- precise positioning at the zero position
- flexible drive technology for different weight ranges
- permanent calibration for easy and fast balancing
Virio 15
- space-saving monoblock design with integrated measuring station and measuring unit
- easy to operate thanks to permanent calibration – no calibration runs required
- unbalance measurement in one or two planes
- fast and straightforward commissioning – no foundation required
- ergonomic operating concept with easy access to all components
- easy and direct entry of all data via touchscreen
- clear, easy-to-read displays and intuitive symbols optimized for touchscreen operation
- easy-to-operate hinged safety guard
- integrated storage compartment for clamping tools in the machine frame
- mineral-cast machine frame with excellent vibration damping
- safe operation through compliance with the applicable Machinery Directive 2006/42/EC
- high measurement accuracy
Virio 10 to 300
- force-measuring vertical balancing machine with a highly vibration-damping mineral-cast housing
- can be installed and operated without a foundation, with the machine bolted directly to the workshop floor
- no calibration runs and short changeover times thanks to the force-measuring principle
- precise unbalance correction directly in the machine – can also be retrofitted
- high balancing accuracy
- weight ranges of 10, 50, 100, and 300 kg, with a continuously variable three-phase drive for precise balancing across a wide weight range

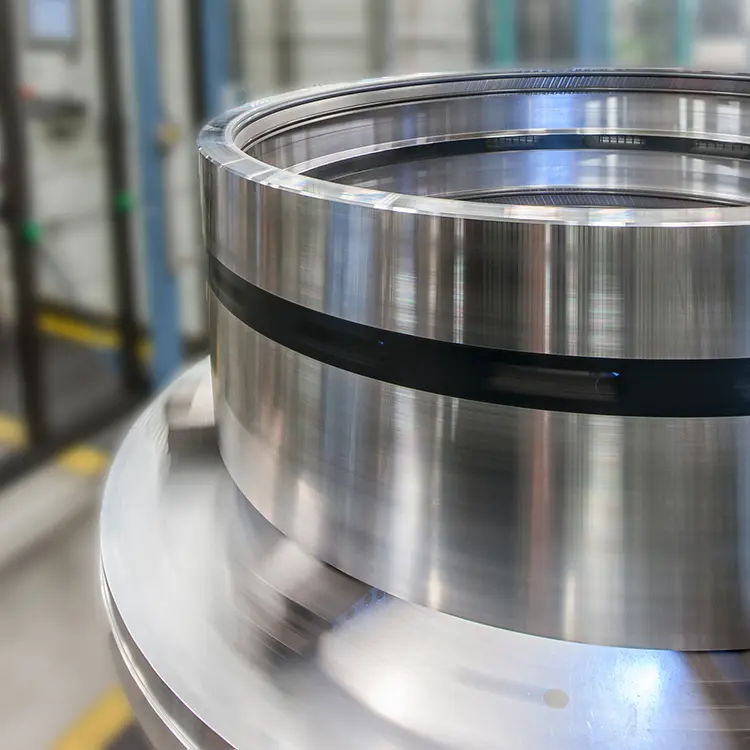

What applications are Virio balancing machines particularly suitable for?
Virio 05/5
With a sophisticated machine concept designed for rotors weighing up to 5 kg, the Virio 05 and Virio 5 enable precise balancing of small and medium-sized rotors. The ergonomic design contributes significantly to efficient workflows:
- optimal access to the working area, measuring unit, and all other important controls
- optimized human-machine interface for error-free operation and fast setup
- balancing in one or two planes
- permanent calibration – no time-consuming calibration runs required
- easy setup for different rotors
- small footprint
Virio 15
The Virio 15 combines excellent mechanical design, precise measurement technology, and easy network integration.
- mineral-cast machine frame: 10 times greater vibration damping than gray cast iron
- can also be used as a crane-hook balancing machine
- permanent calibration
- the Virio 15 fully complies with the requirements of Machinery Directive 2006/42/EC and is CE certified. The safety guard complies with the stringent requirements of ISO 21940-23 Class C for protection against flying parts
Virio 10 to Virio 300
The choice of the optimum correction method depends on the rotor type and material. The horizontally and vertically integrated correction modules of the Virio enable convenient and precise unbalance correction using various correction methods directly in the machine. Time-consuming loading and unloading is eliminated.
- correction methods: drilling, milling, punching, riveting, welding
- modular adaptation to rotor type and material
- convenient and precise unbalance correction directly in the machine
- short changeover times
- continuously variable three-phase drive
- Class C 600 protective enclosure in accordance with ISO 21940-23
What measurement technology does the Virio use?
The Virio uses Schenck's CAB measuring system for easy, precise, and safe balancing.
All data at a glance
Modern measurement technology is at the heart of every Schenck balancing machine. With our CAB measuring devices, you benefit from digital measurement processing for high accuracy, a clear unbalance display, and an ergonomic, easily accessible operating concept.

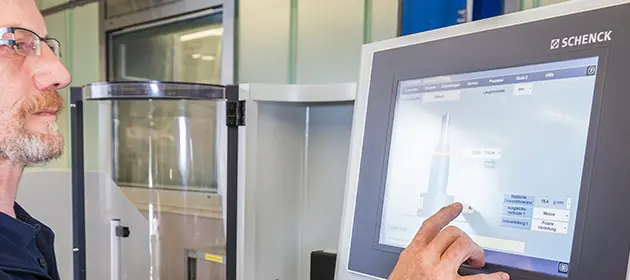

CAB 920 – innovative all-rounder
Even more possibilities: With the high-end CAB 920 solution, balancing can be achieved with minimal training. This is ensured by the innovative operating concept with guided navigation. Do you have special requirements? CAB 920 can be expanded with additional functions and industry-specific solutions and adapted to your needs.
Precise work made easy
CAB 920 impresses with a well-thought-out operating concept that enables fast and safe working with minimal training. Intuitive handling and high precision in measured value processing result in a high unbalance reduction ratio. Many rotors are already within tolerance after the first measurement run.
