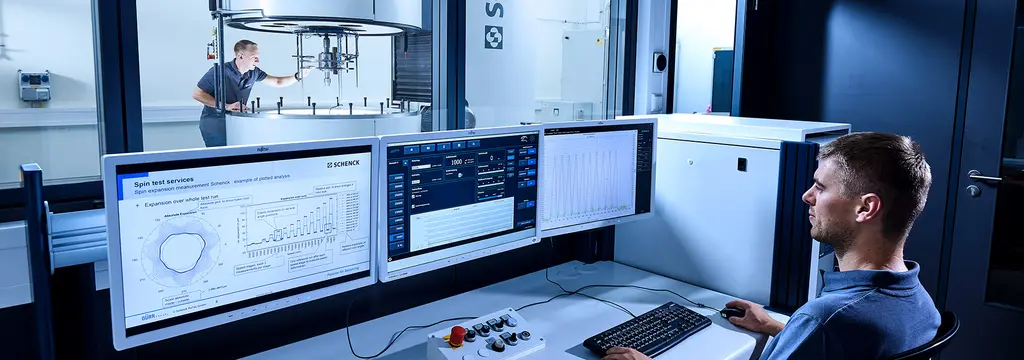

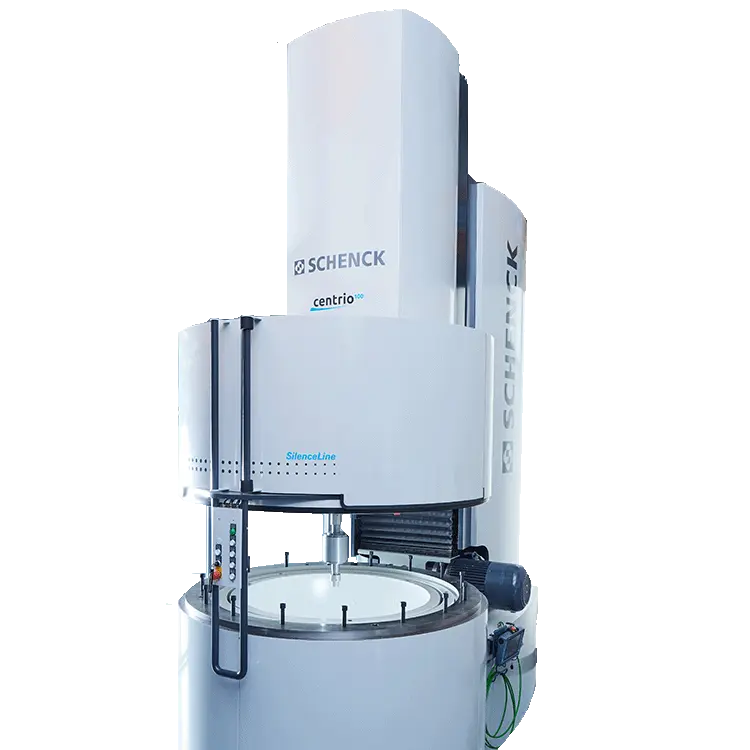

Schenck Centrio centrifugal test rigs are used to test rotating components in a centrifugal field. These are proven test rigs that are indispensable for the development, manufacture, and quality assurance of rotors in the field of green technology. The main areas of application are: material consolidation, strength testing, burst testing, LCF testing (long-term fatigue testing), and HCF testing.
The test rig contains a vacuum-tight container with integrated burst protection. This is dimensioned by Schenck to absorb the expected fragment energy when a rotor bursts.

Ventuo Cor balancing solutions offer manual and fully automatic balancing systems for wheel manufacturing. Our balancing stations are an integral part of a wheel balancing machine and all known balancing weights can be processed in these stations. In manual balancing, the operator attaches the weights to the balancing planes supported by the wheel alignment function for ergonomic balancing in short cycle times. Fully automatic systems apply adhesive, or two-piece clamping weights, reliably in the corresponding balancing planes. When applying adhesive roller weights, these are cut to the exact length or weight by a cutting device and pressed onto the entire wheel surface by an application hand. The exact positioning of the balancing weights ensures low residual unbalance and smooth running of the complete wheel.

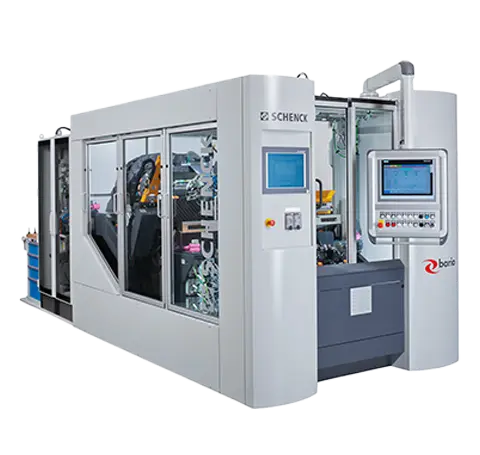

Bario is a fully automatic and flexible 2-station balancing machine for the series production of symmetrical and asymmetrical passenger car crankshafts. The precision balancing unit allows asymmetrical crankshafts to be measured without the need to install master rings. Automatic unbalance compensation is achieved by drilling with minimum quantity lubrication. Particularly advantageous for the high cycle time and quality requirements in the automotive industry: The machine can be converted to other crankshaft types in a very short time.

Balancing machine for turbocharger core assemblies: State-of-the-art with automatic unbalance measurement and automatic unbalance correction, pulsation measurement and vibration analysis - the Xento and Xento+ balancing machines are suitable for vibration and pulsation measurement on turbocharger trunk assemblies, speed control and unbalance calculation in up to three planes. Their range of functions includes manual and automatic loading, DMC scanning, speed and angle measurement as well as two-plane correction by milling.

We are here for you with our helpdesk, spare parts, equipment rental service, and repair center.

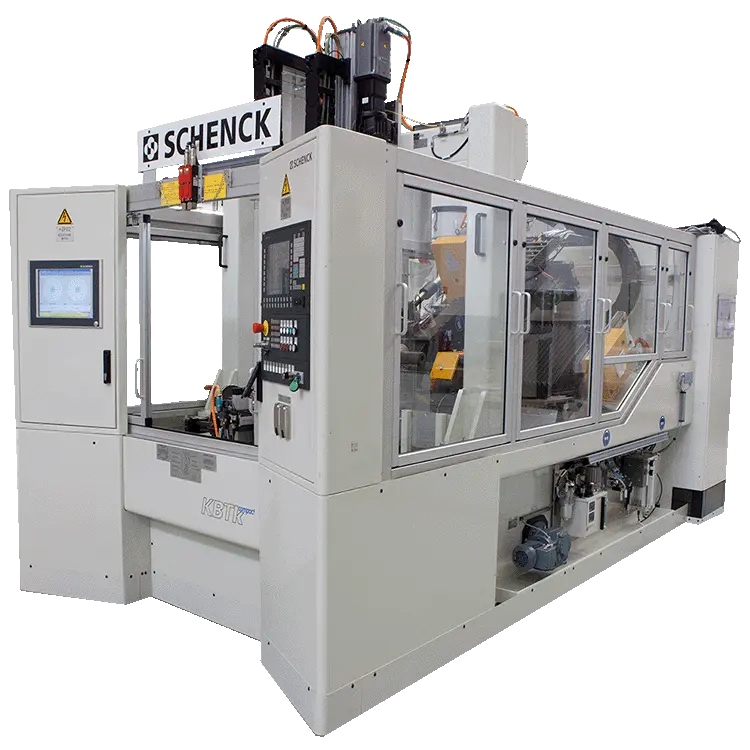

Our KBTK-C is particularly powerful when working with large asymmetrical crankshafts. With a hook drive balancing unit with an externally rotating hook for attachment to the crankpin and the option of storing the crankshafts in rollers or bearing shells, the KBTK-C offers maximum precision when measuring large asymmetrical crankshafts and large values for master ring masses to be simulated. For unbalance compensation in one or two-step processes, the machine has a robust and powerful two-spindle drilling unit. This allows two drilling diameters to be combined as desired and without any loss of time in the compensation process.

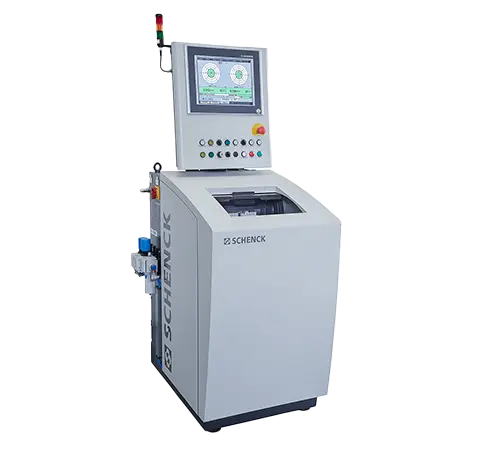

Balancing machine for turbocharger compressor wheels and turbine rotors: Xano is the optimum solution for measuring the unbalance of finished impellers in series production of low and medium quantities, in quality control and in research and development. With unbalance measurement on two levels and unbalance correction in several work steps using an optional correction unit. Loading and unloading is done manually.

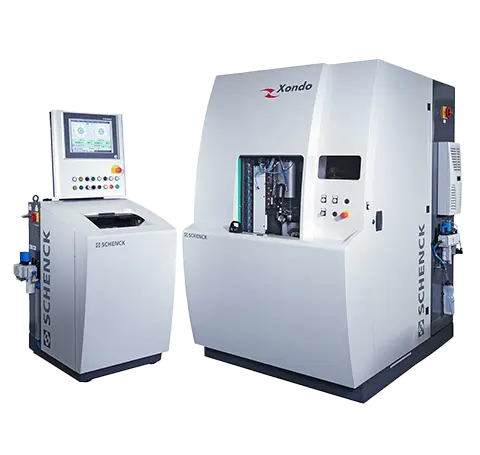

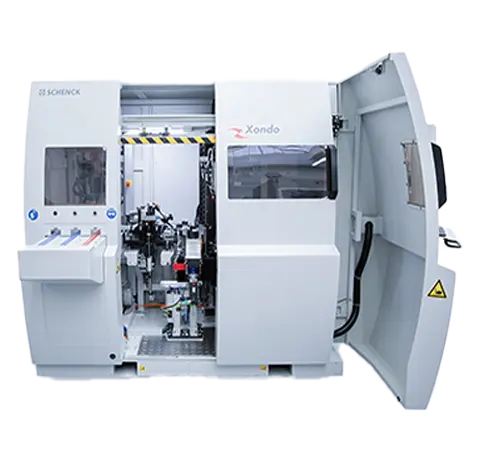

Balancing machine for turbocharger core assemblies: The machines in the Xondo 010 - 500 series are suitable for high-precision measurement and exact correction of the dynamic unbalance of finished turbocharger compressor wheels - in medium and high series production quantities. Unbalance measurement is carried out either fully automatically or semi-automatically by polar milling on two levels and with up to two correction processes. A loading gantry is available for loading and unloading.

Balancing machines for turbocharger core assemblies: With its compact design, integrated shaft magnetisation and an oil lubrication system with parameter control, Xonos is a powerful and versatile balancing machine for turbocharger core assemblies. Suitable for vibration and pulsation measurement, speed control and unbalance calculation in two planes. With DMC scanning, shaft magnetisation for speed and angle measurement and two-plane balancing by milling in a single-station machine. Loading is manual or automatic.

Balancing machine for turbocharger turbine rotors: Our solution for measuring and correcting the dynamic unbalance of finished turbocharger turbine rotors. The balancing machines in the Xondo 020 to 400 series are particularly suitable for series production of medium and large quantities. With a choice of fully automatic or semi-automatic unbalance measurement and fully automatic unbalance correction by grinding on two levels and with several correction processes. Loading and unloading takes place via a loading gantry.

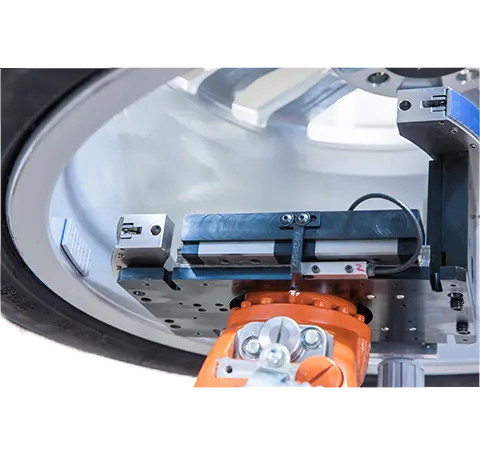

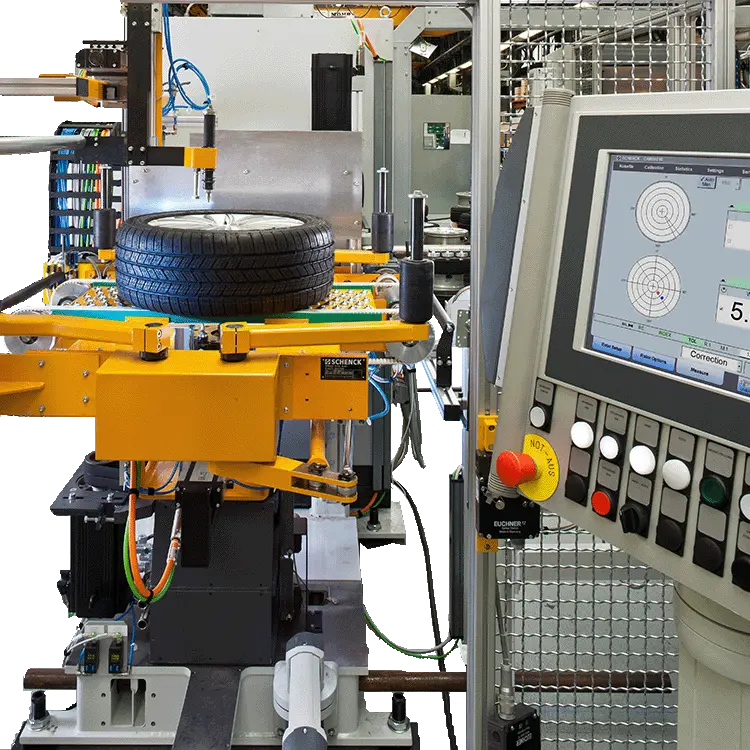

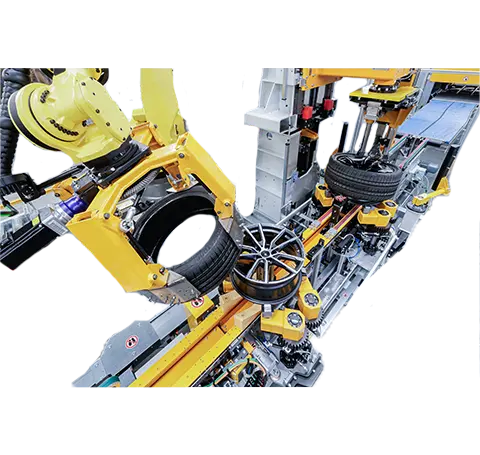

Ventuo Mount wheel mounting machines offer maximum efficiency for semi-automatic and fully automatic mounting of tires on rims, including the mounting of run-flat tires, UHP tires, or complete wheels for vans. Various individual functions, such as plausibility checks of the tires and rims fed into the machine, mounting torque monitoring, valve detection and positioning, or automatic soap application for tires and rims, make the mounting station a fully automatic complete system that meets all your requirements.

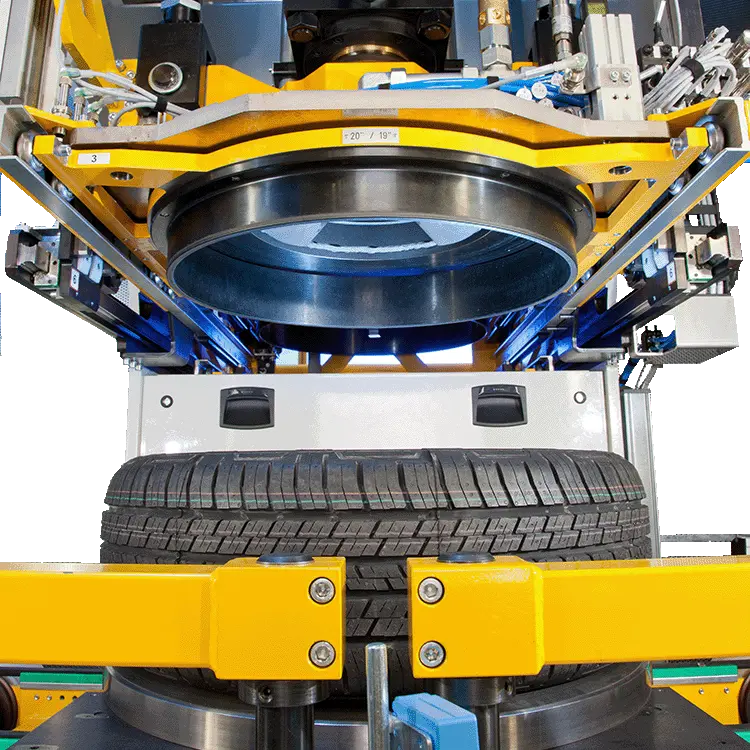

The Ventuo Inf series machines are designed for efficient filling of car tires, regardless of rim design for tire sizes from 14" to 25". The tire filling process using a filling bell takes place without contact with the rim design side. An individual filling ring configuration is available for maximum application flexibility. The neutral exchange of filling rings in mixed operation occurs through our patented filling ring magazine without affecting the cycle time. The fully automatic filling bell ensures maximum filling accuracy and the shortest cycle times.


A patented test standard allows you to check the machine capability and filling accuracy without being influenced by the tire/temperature properties.

Our fully automatic wheel balancing machines from the Ventuo Bal series measure the static and dynamic unbalance of complete car wheels and rims in a working range from 14'' to 25''. They measure the unbalance and calculate the necessary balancing procedures for the optimal balancing process, thereby, achieving the smallest residual unbalances of the complete wheel, and, when in “control measurement” mode, determine the residual unbalances after balancing has been completed. Your advantages are the high stability of the measuring system without interference with cycle times of less than 10 s. Our Ventuo Bal is the basis for unbalance testing in the rim manufacturing process and considers advance values for different valve types when determining residual unbalance.

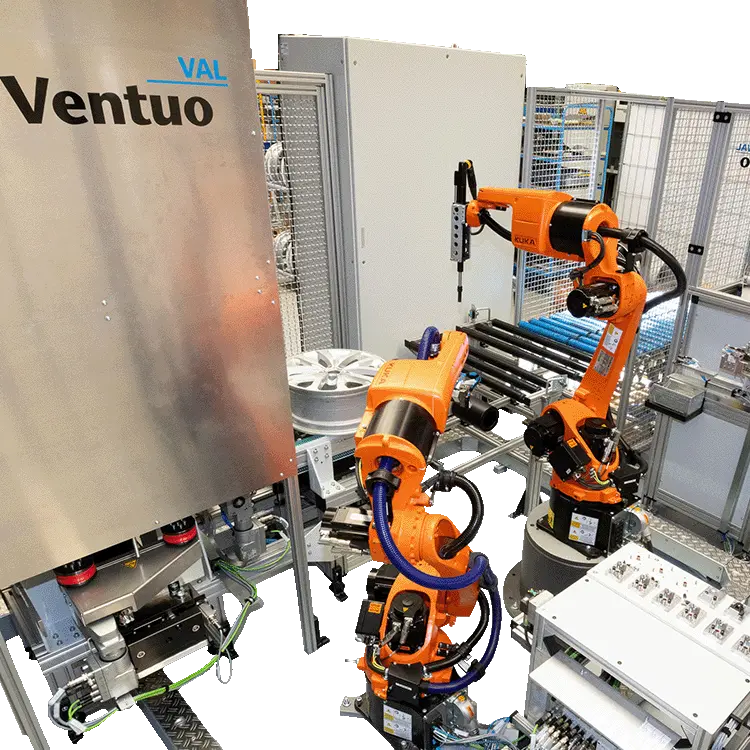

Ventuo Val is our new automation solution for RDK screw valves, RDK snap-in valves, and rubber valves. The machine processes more than 300 parts per hour and can handle rims ranging in size from 15" to 25" without retooling. The modular system enables the processing of different valve types and rim geometries without time-consuming teaching and is flexibly adaptable to different layout specifications and is expandable using robotics, innovative vision systems, and AI-based algorithms.

We are at your side with maintenance and inspections, health checks and machine relocation.

Standard-compliant quality certification – our accredited testing laboratory validates machines and traceable working standards

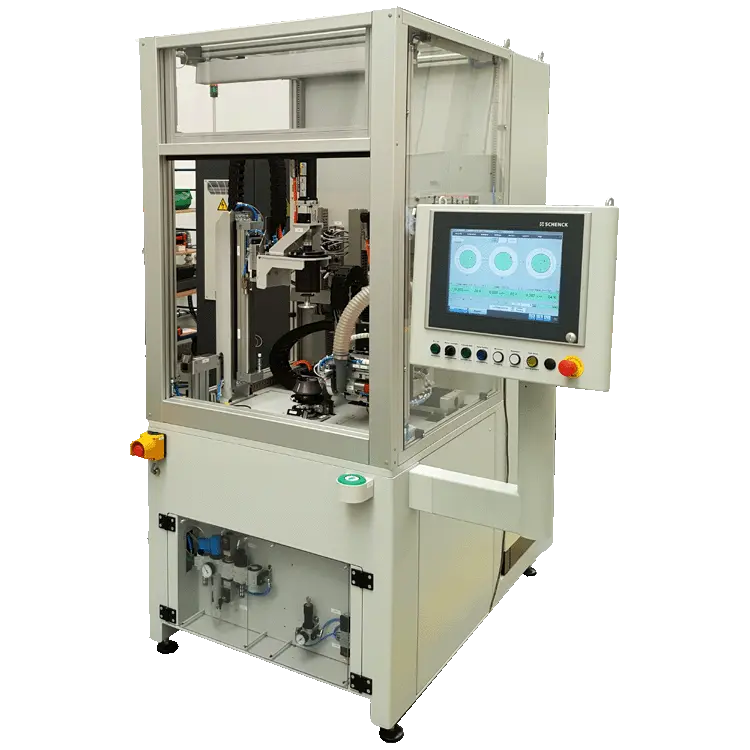

The REJV balancing and diagnostic machine has been specially developed for use with gas heating appliances. It is a hand-loaded machine combined with an automatic balancing unit to ensure precise and efficient machining. The machine performs corrections in two planes to ensure optimum balancing. The unbalance of the fan is corrected by removing material with a milling unit. The cycle time depends on the milling steps.

The REJS is the vertical Schenck balancing machine for engine-cooling fan assemblies and complete units. The semi-automatic machine with manual fan loading and manual correction can also be used for double fan modules if required. Correction is carried out by adding metal weight clips to the fan blades. The REJS offers the option of clamping complete fan modules with frame as well as just the drive with fan wheel. The tools can be changed in just a few minutes when the machine is in use.

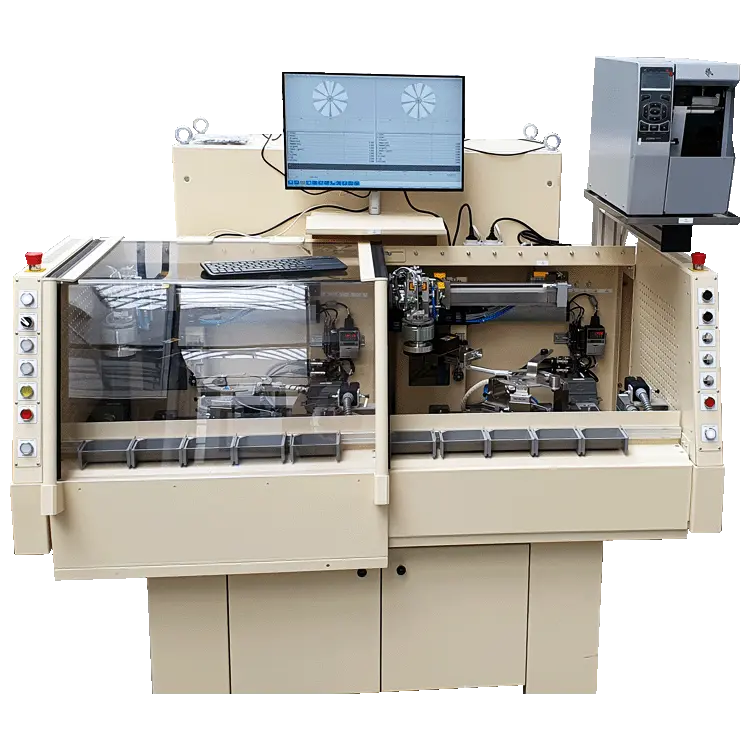

The REJH horizontal balancing and diagnostic system is suitable for unbalance measurement in the series production of complete vehicle interior blowers. It is suitable for measuring static and dynamic unbalance in both rotor planes to optimize unbalance correction. Other possible test and diagnostic procedures include analyzing the motor current and voltage, vibroacoustic noise testing (VAD) and measuring the direction of rotation and speed. These parameters can be flexibly expanded according to customer requirements. The REJH offers a flexible approach and easy retrofitting for a wide range of fan types and motor diameters.

Improve balancing, engage in interactive training, and expand your expert knowledge with the Schenck Academy.

For maximum precision in quality assurance during inspection or production, Schenck inspection machines offer quality control for crankshafts weighing up to 250 kg. With a horizontal rotor axis, a clutch-free roller or spindle drive, and a highly sensitive measuring unit, they enable precise detection of unbalance in two planes. Optionally expandable with a correction unit. In desired configuration suitable for determing centering biases and, thanks to their expandability, can be flexibly integrated into your production line.

Compact, flexible, and precise: Our two-station balancing machines are ideal for small to medium-sized series production or repair applications. They offer various balancing units that can be selected depending on the foreseen crankshaft types. With their clutch-free roller drive or hook drive balancing unit, they are optimized for unbalanced crankshafts. Manual loading and manual transport between the measuring and balancing stations ensure versatile application possibilities without compromising precise positioning during the unbalance correction. Measurement and control run are performed automatically, while balancing is achieved through precise drilling into the counterweights on a separate drilling station. A second balancing step is possible if required.

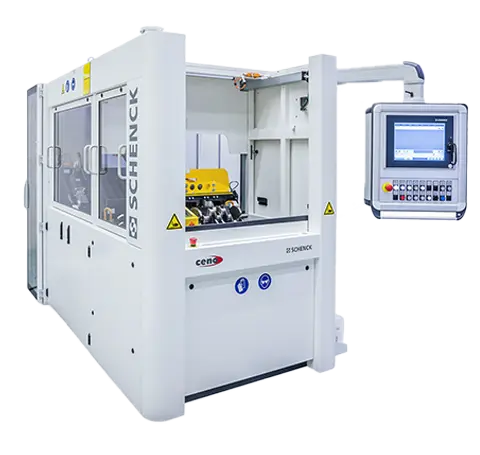

The CENO automatic balancing machine is particularly compact and ideal for small and medium-sized crankshafts weighing up to 20 kg. With standardized interfaces, it can be easily integrated into customer loading and unloading systems, even retrospectively. The CENO has a precise balancing unit with final drive that can also balance asymmetrical crankshafts without master ring weights. Unbalance is compensated by optimized polar drilling into the counterweights. Thanks to minimum quantity lubrication, no additional coolant or lubricant is required, which allows the workpieces to be further processed without cleaning. In addition, the CENO features energy-efficient drives that consume about 25% less energy than comparable solutions.

A special clamping device enables precise measurement of the eccentricity of raw crankshafts, which ensures accurate determination of the position of the axis of inertia. Thanks to our many years of experience, we are also able to reliably mass-centering asymmetrical crankshafts. We offer two solutions for this process:

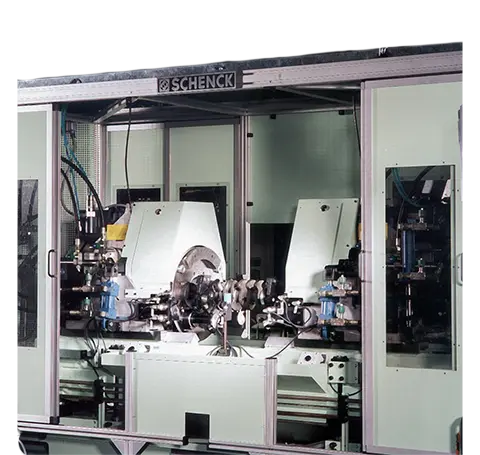

400MBRZ and 600MBRZ series: Measurement of eccentricity and transmission of coordinates for centering for the subsequent operation. Particularly suitable for high productivity with a smaller range of types, requires no pre-processing, and enables the combination of different processing steps depending on the machine concept.

400SBRZ and 600SBRZ series: Measurement of eccentricity and insertion of centering holes in an optimized position. Suitable for a wide variety of types, requires only cutting to length as pre-processing.

The machines are easy to convert and can be loaded automatically or manually with the aid of lifting equipment.

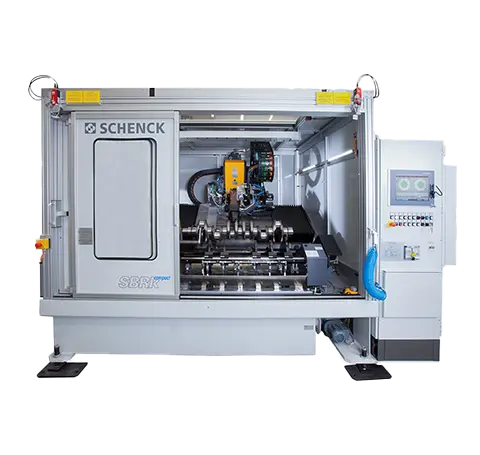

Ideal for medium to large series production: Our 320 SBRK-C and 520 SBRK-C balancing machines offer fully automatic measurement and compensation of unbalance. These compact single-station machines allow manual or automatic loading. The oscillating frame with robust hook drive and slide bearings ensures operating-like measuring conditions, reduces surface load during drilling, and protects the main bearings. Drilling with minimum quantity lubrication shortens drilling times and improves tool life. Asymmetrical crankshafts can be balanced without master rings. The machines in the SBRK-C series are available in various sizes for passenger car and light commercial vehicle crankshafts as well as for medium and heavy commercial vehicle crankshafts.

Don't have the right balancing machine? No problem. We can balance your parts for you anywhere in the world.

Wide range of variants – small batch sizes: the Cardano is designed for the efficient balancing of medium-weight and heavy drive shafts. The balanced mix of manual operating steps and automated processes is particularly worthwhile for small and medium quantities and optimizes process reliability in production. The result: shorter cycle times for series production as well as for high-performance repair shops.

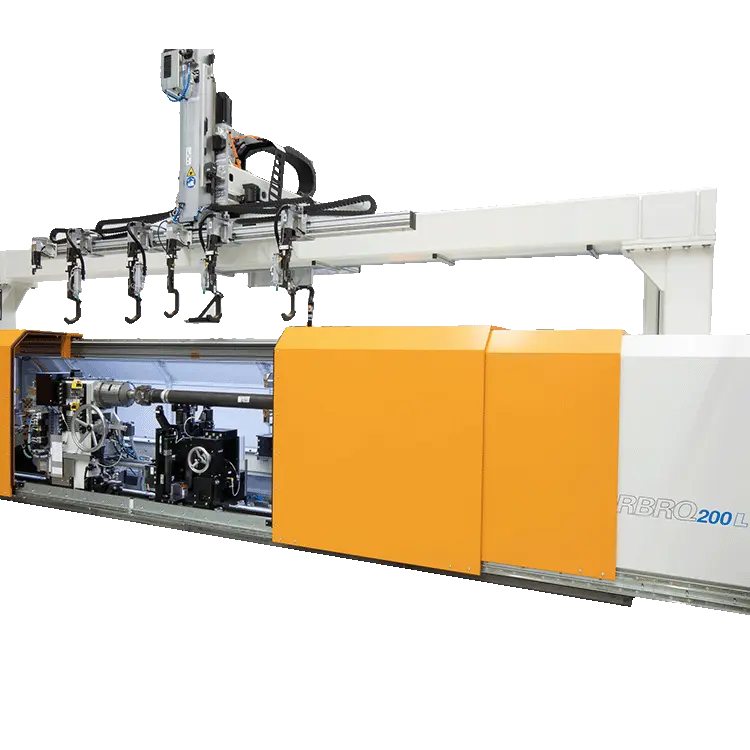

Balancing machine for single-piece and multi-piece automotive drive shafts for use in large-scale production. Highly automated, patented imbalance compensation process ensures minimal cycle and changeover times. Isotropic bearing blocks simulate actual operating conditions.

Benefit from our experts' know-how – from product planning to rotor construction.

Ensure your productivity with reliable maintenance, fast repairs and performance checks.

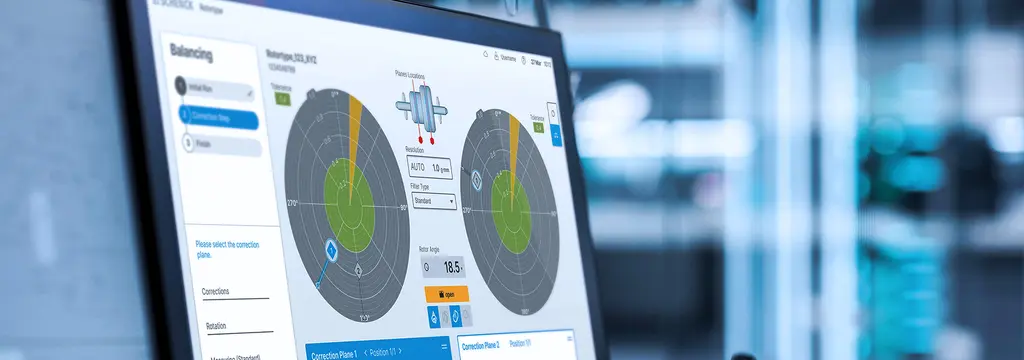

Modernize your existing machines now in just a few simple steps.

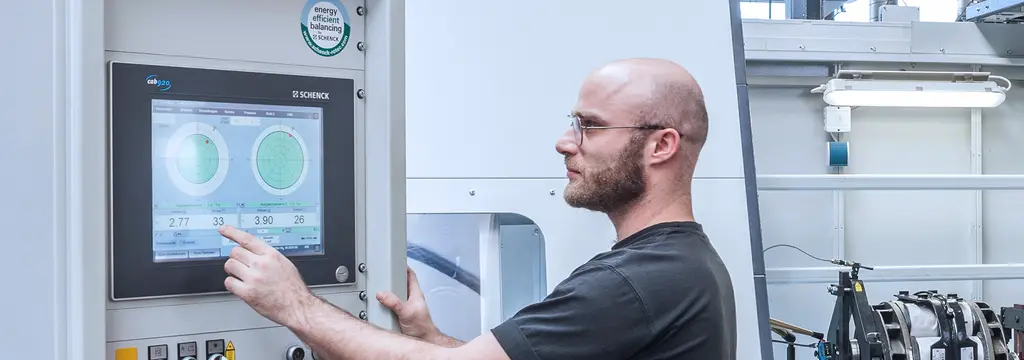

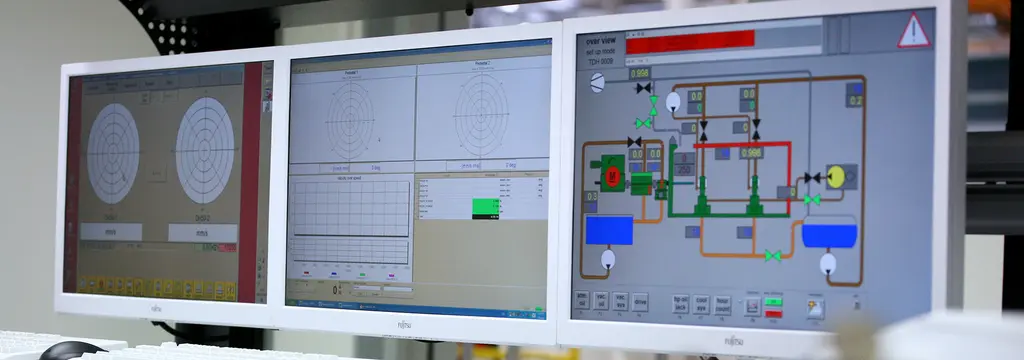

Optimal balancing is based on fast, precise measurement. Our CAB balancing software offers the right solutions for every application.

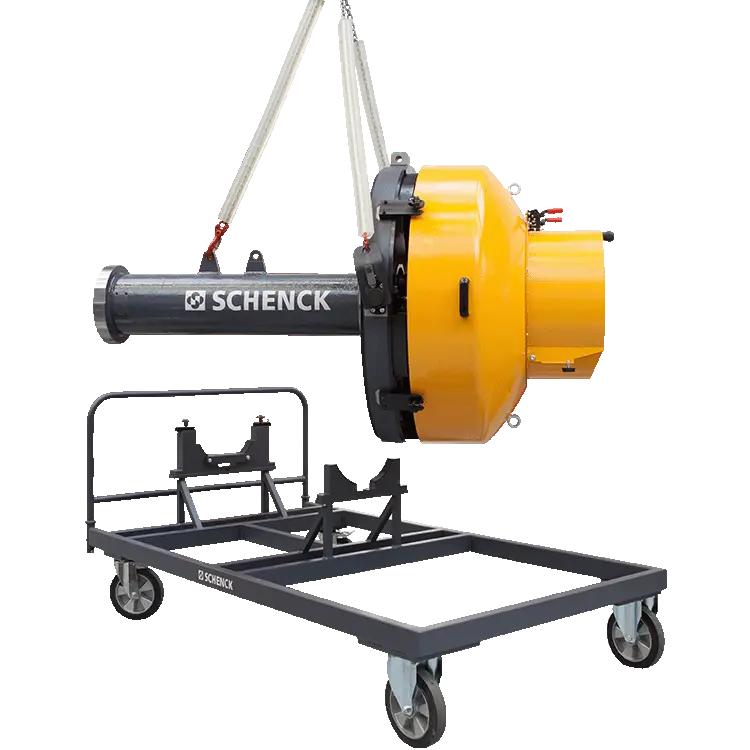

Our tooling packages for single-plane balancing, dual-plane balancing, and torque balances are matched to your system making Schenck your single source.

Optimal results in terms of accuracy and throughput time can only be achieved if the machine system and rotor mounting tooling are carefully matched to each other. The respective task and the specific conditions at the user's site must be considered. We offer complete balancing tool packages for fan blade torque balances as well as vertical and horizontal balancing machines, which are vital and consistent with their ability to manufacture and test high-precision parts. Schenck offers both balancing machines and tools, therefore, our customers receive solutions for their balancing tasks from a single source. Our modular tool concept allows for easy adaptation to various balancing machines for both current and older models.

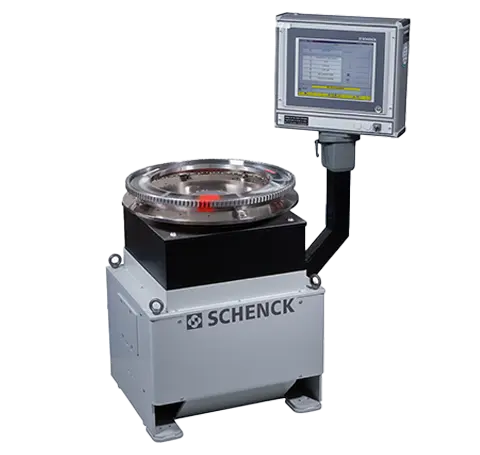

The precise determination of unbalance, center of gravity, and moments of inertia is essential for optimizing satellite alignment control in space and its transport there. Satellite balancing machines help bring satellite unbalances within tolerance, rotating tables measure the moments of inertia before launch, and center of gravity scales precisely determine the center of mass. Schenck machines enable precise analysis of the mass properties of aerospace systems, components, and payloads.

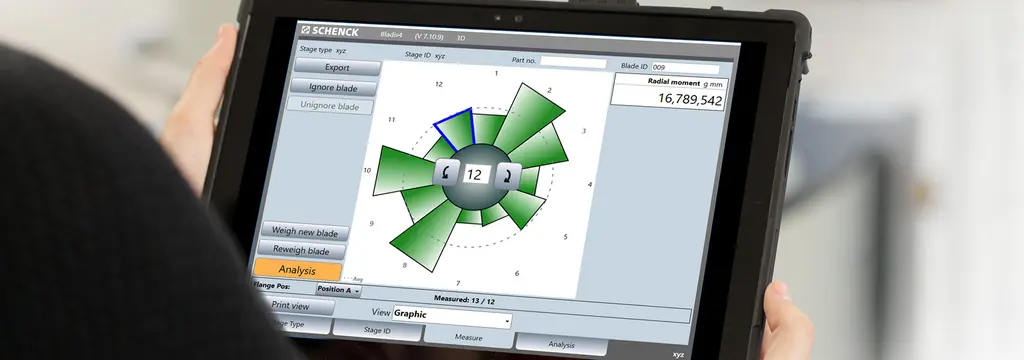

With the new generation of torque scales in the WME series, blades can now be weighed even more precisely and distributed with the help of Bladis 4.

Leading measuring software for high-speed balancing of shaft-elastic rotors.

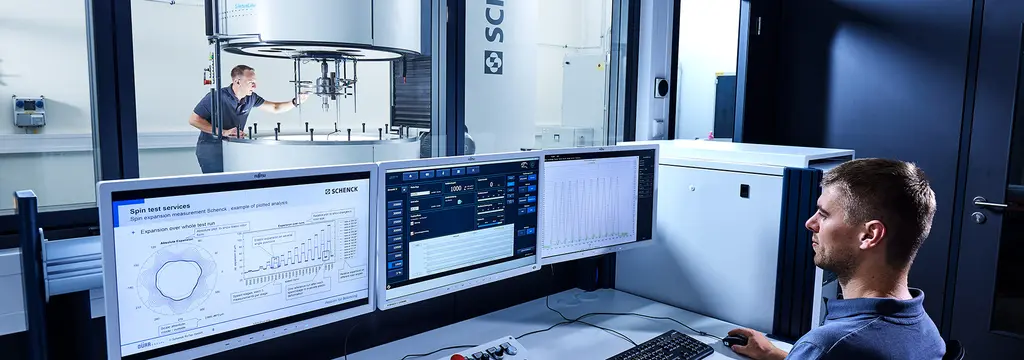

Cast 2 controls and monitors the measurement data from our spin tester to ensure optimal processes and quality.

Virio 5 is the vertical balancing machine for small, lightweight rotors such as small fans without their own drive, centrifuges, deflection wheels, coupling elements, or rotating paint nozzles. The balancing machine can be set up on a table and operated while seated. The balancing unit, measuring device, and control box are located on a base plate. All control buttons are clearly arranged and easily accessible.

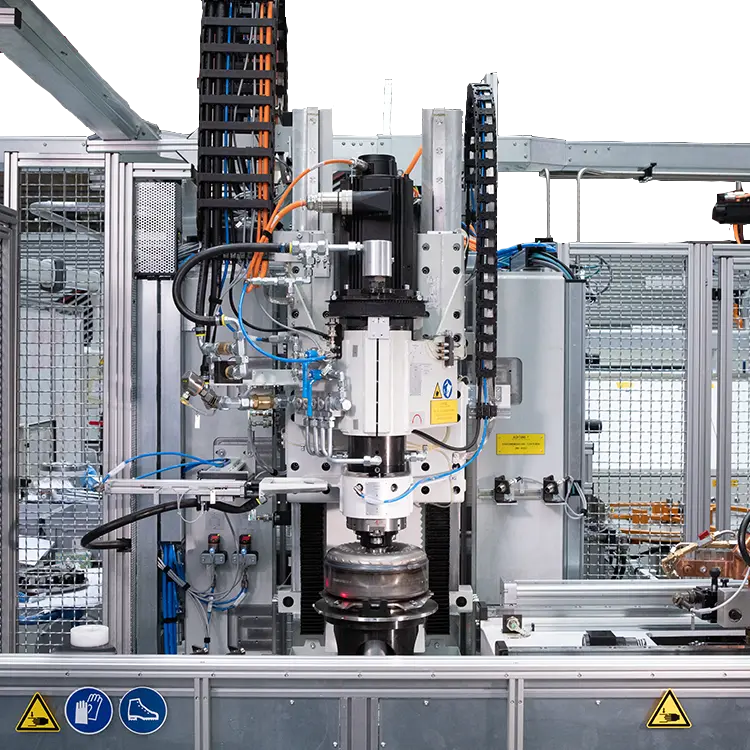

Balancing machine for torque converters: UBLD is the production line-compatible balancing machine for torque converters with fully automatic correction The unbalance correction is carried out in accordance with DIN 1319, the cycle time is 60 - 80 seconds.

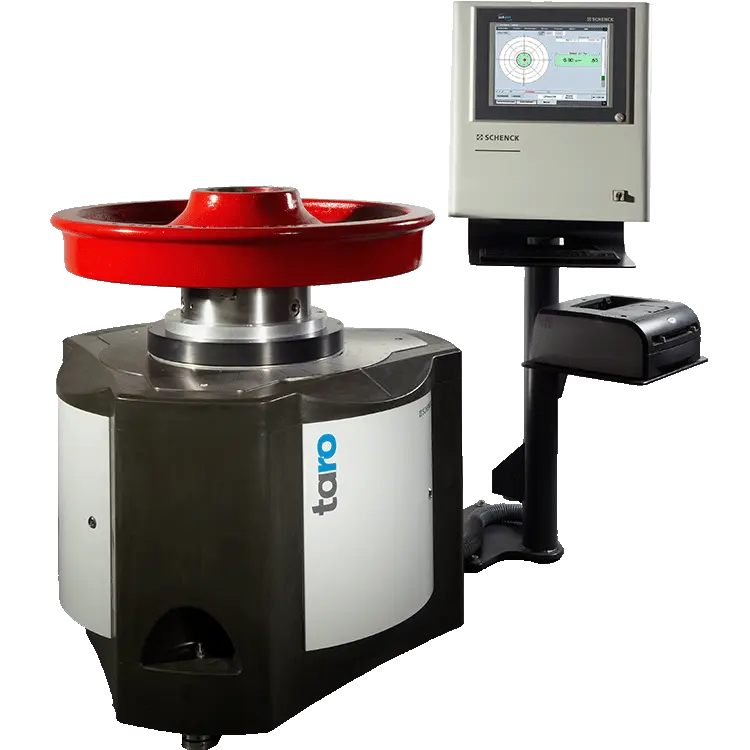

The Taro 600/1600/3600 balancing machines are ideal for precisely measuring the static unbalance of disc-shaped bodies such as grinding wheels, propellers, brake discs, railway wheels, and pump rotors. In addition to pure unbalance measurement, they are suitable for unbalance correction in production, incoming goods inspection, and rebalancing. They also automatically determine the workpiece weight.

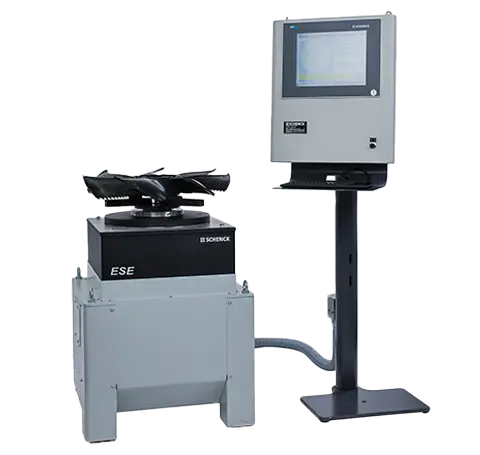

The ESE and ESF machines are our housing versions for large rotors, such as grinding wheels, fans, ventilators, railway wheels, vehicle tires, complete wheels, and propellers weighing up to 200 kg. Balancing is performed by adding material directly to the machine or by removing material on separate balancing units. These machines are suitable for pure unbalance measurement, unbalance correction in production and incoming goods inspection, rebalancing, and weight measurement.

The ESE and ESF machines are our housing versions for large rotors, such as Grinding wheels, fans, ventilators, railway wheels, vehicle tires, complete wheels and propellers weighing up to 200 kg. Balancing is performed by adding material directly to the machine or by removing material on separate balancing units. These machines are suitable for pure unbalance measurement, unbalance correction in production and incoming goods inspection, rebalancing, and weight measurement.

Ideal for medium to large quantities of up to approx. 2 million electric armatures per year.

The CIVO offers you maximum balancing performance in the smallest of spaces. It is designed for the fully automatic balancing of small electric armatures up to 500 g (optionally up to 3 kg). The machine is a 5-station machine designed for the automatic balancing of electric armatures by milling or optionally drilling. Balancing takes place in one or two planes. The machine essentially consists of the transfer station to the on-site feeder system, measuring station, balancing station level 1, balancing station level 2, measuring station for audit check, internal pick-and-place lift and turn transport, as well as the electrical control cabinet and protective device.

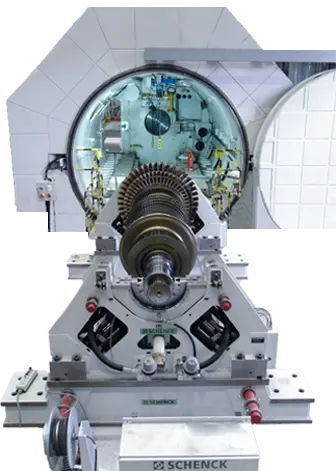

Our high-speed special balancing machines DH 2 to DH 13 are ideal for balancing large power plant turbines, compressors, and engine components. The isotropic bearing stands ensure high stability at maximum speeds and can be switched remotely. The latest generation of our expert system CABflex3 enables flexible analysis of your measurement data.

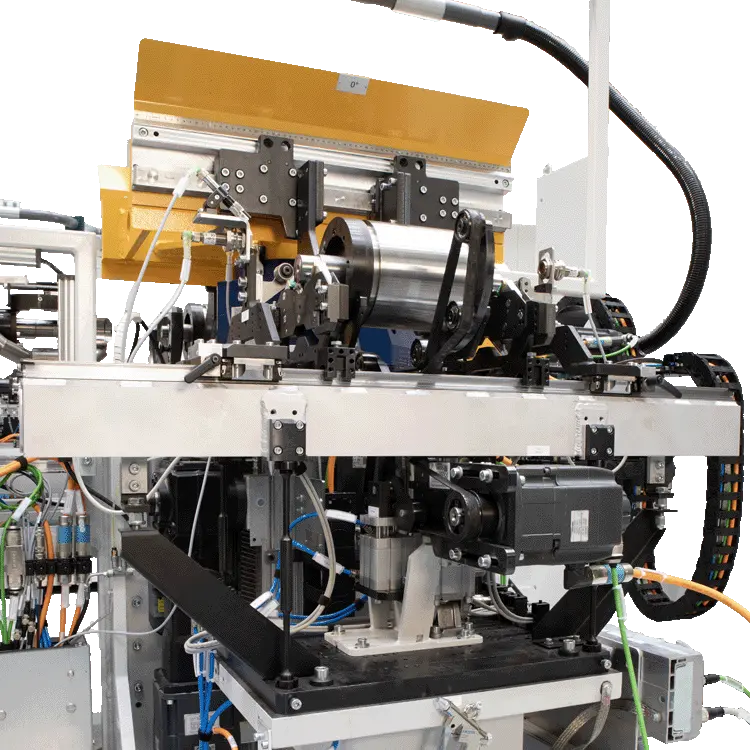

The eTENO optimizes the fully automatic balancing of eDrives and rotors of the same design in series production. As a two-station or four-station machine with separate measuring and balancing stations, it enables cycle times of only 50 to 100 seconds and even better results. Storage in the measuring station is usually in rollers, ensuring maximum precision. The orbital positioning of the drilling unit allows balancing over the entire circumference, and the specially designed chip extraction system also works on the rotor shaft. Solutions for radial balancing are available. Optional protective cover.

The HL series balancing machines with saddle bearings are specially designed for balancing turbines and compressors in the aviation industry. Their modular design ensures maximum flexibility adapting the machine to different balancing tasks as required, for example, by supporting rotors with shaft journals on roller-bearings. High measurement accuracy is guaranteed by digital processing of the measured values.

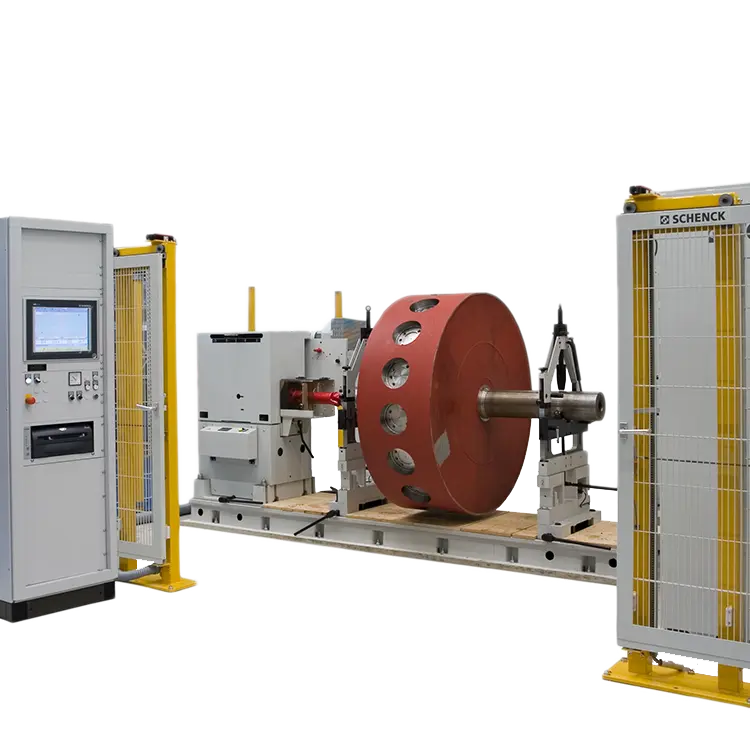

Balancing machines of the HM 4 and HM 40 series as well as HM 5 and HM 50 series enable precise balancing of a wide range of rotors with a maximum weight of 8 tons. Typical rotors include electric anchors and rollers, spindle shafts, turbochargers, crankshafts, fans, pump impellers, drive elements, tool holders, and gears.

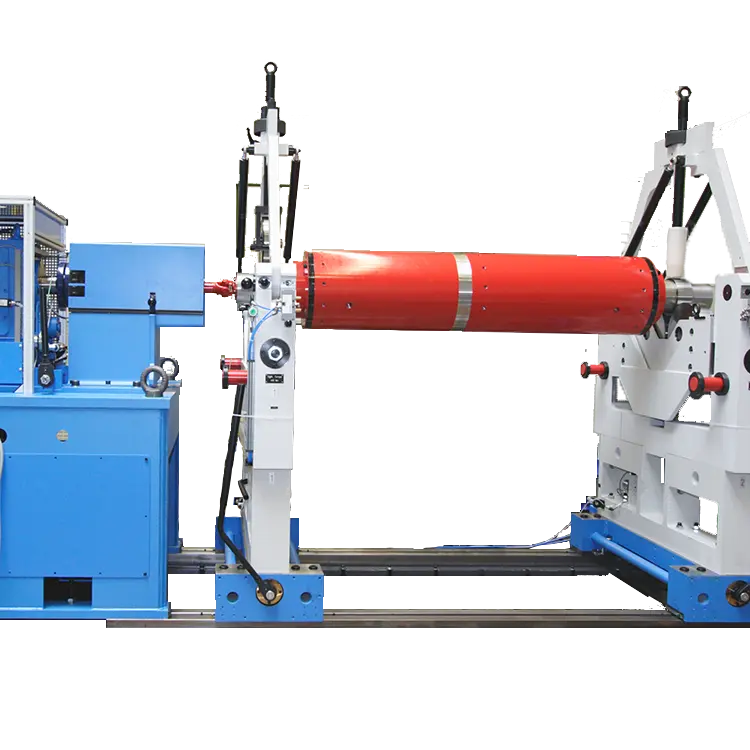

The HM 6 and HM 60, HM 7 and HM 70, and HM 8 and HM 80 horizontal universal balancing machines are ideal for large, rigid, and elastic rotors with a maximum rotor weight of up to 250 tons. Typical applications include: blowers and fans for all industrial sectors, high- and low-speed rollers for the paper and film industry, electric squirrel-cage motors and generators for the electrical industry, and separators/centrifuges for water treatment.

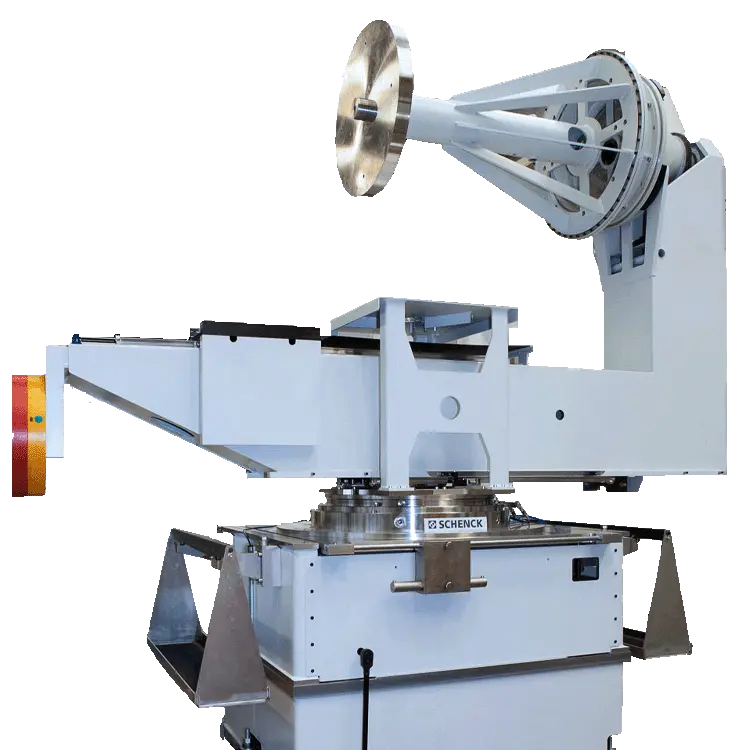

Our moment weighing scales for engine components (WM series for engine blades and WME series for rotor blades) enable highly accurate determination of the center of gravity. They operate according to the force measurement principle, are permanently calibrated, and are insensitive to temperature fluctuations. The special friction-free and backlash-free mounting design of the measuring arms ensures they operate wear-free and with high accuracy regardless of the component weight.

Ideal for small and miniature rotors – from dental tools and miniature fans to complete assemblies in research, development, and small-batch production, as well as repair and maintenance work: The compact Pasio 005, Pasio 05, and Pasio 5 balancing machines are tabletop machines that deliver big results in the smallest of spaces. They are technically optimized for their respective areas of application, with different drive concepts and rotor bearings.

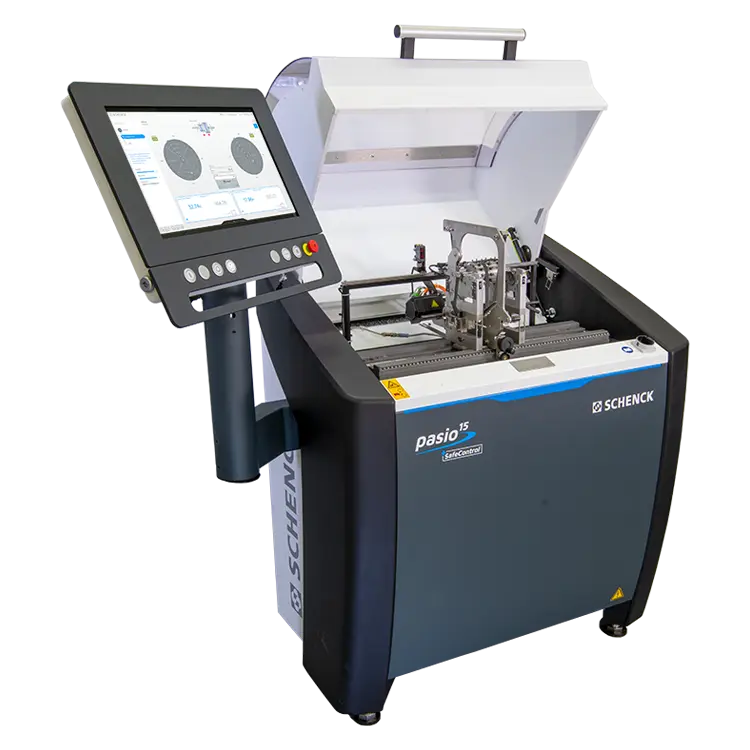

The Pasio 15 universal balancing machine is the right choice for a wide range of rotors weighing up to 15 kg – for example, electric anchors, fans, and aggregates. Ideal for small series production and development, as well as in the repair and maintenance sector. Commissioning is easy: set up, align, connect, balance. The convenient one-hand folding bracket drive makes it easy to store the rotor in the machine.

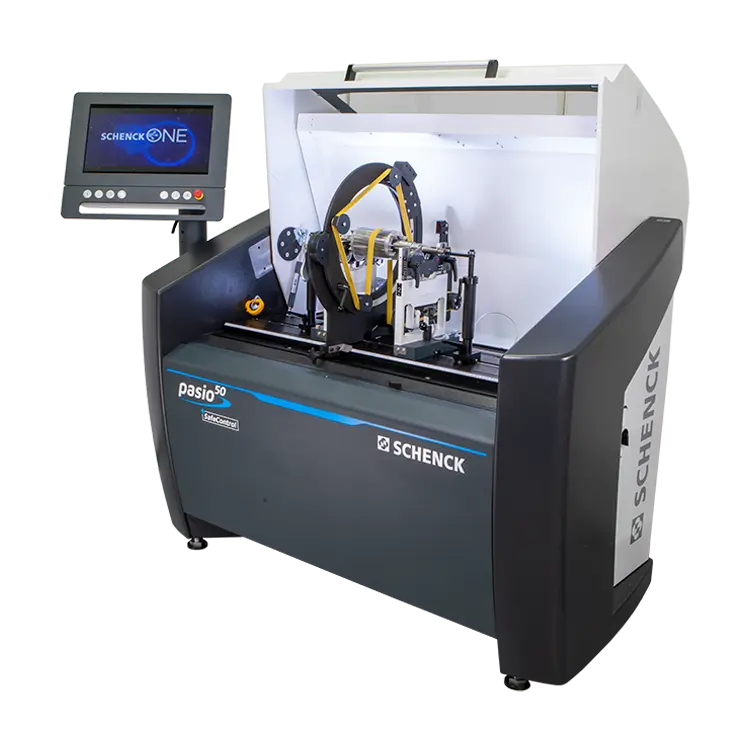

Pasio 50 is designed for rotors weighing up to 50 kg with a maximum rotor diameter of 600 mm and a length of 1,000 mm. The balancing machine covers a wide range of rotors, especially in manufacturing and repair operations. The sophisticated mechanics and perfect measurement technology enable residual unbalance of less than 0.5 gmm/kg per plane.

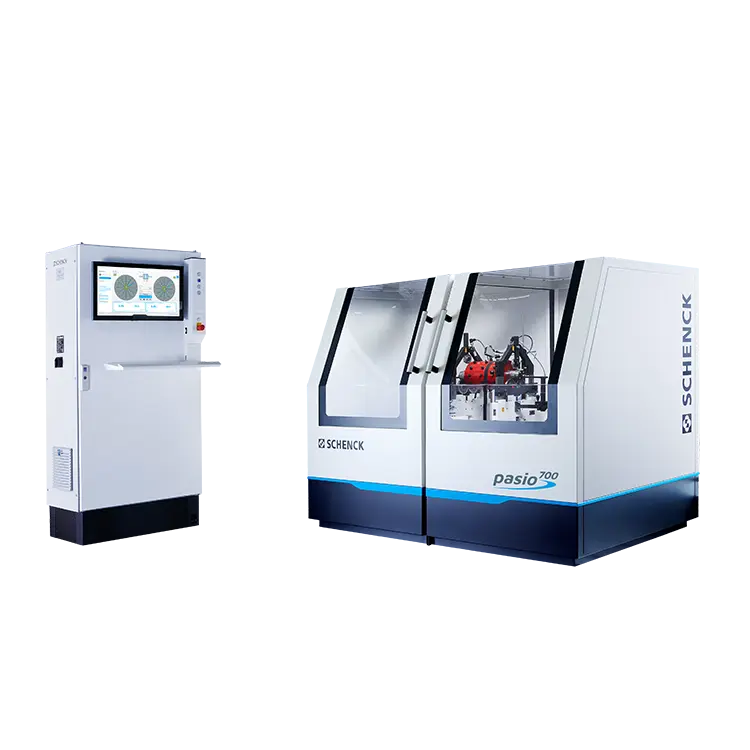

New to the Pasio series – With Pasio 100, Pasio 300, and Pasio 700, you get state-of-the-art balancing machines for horizontally mounted rotors weighing up to 700 kg: fans, spindles, electric anchors, compressors, rollers, turbochargers, and much more. Maximum ease of use is ensured by features such as a compact pneumatic control unit for belt tensioning and a large, clearly arranged touch screen (24") with flexible height adjustment.

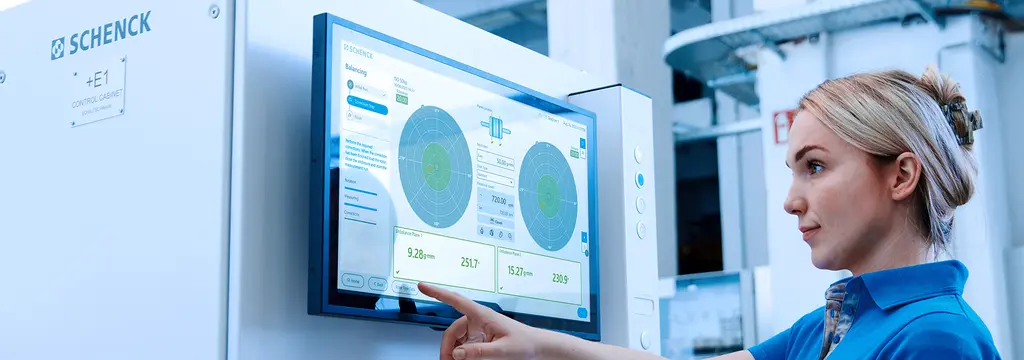

With Schenck ONE, you can keep an eye on data and processes and work as efficiently as possible with highly accurate measurement and support software.

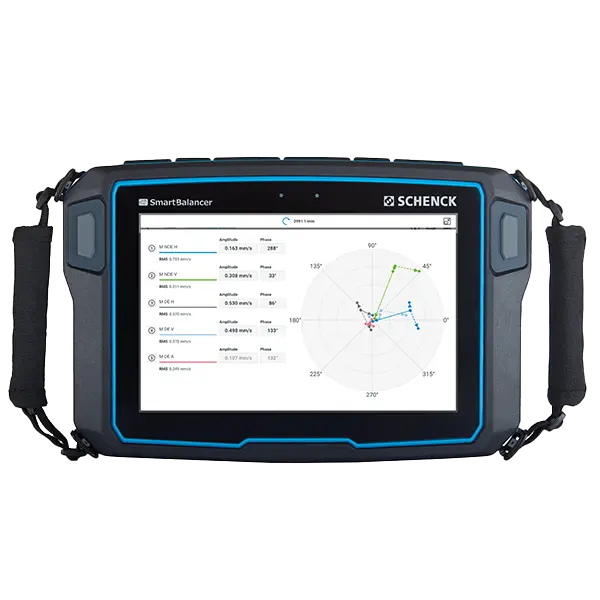

Detect, correct, and prevent unbalances during operation with the SmartBalancer 4.

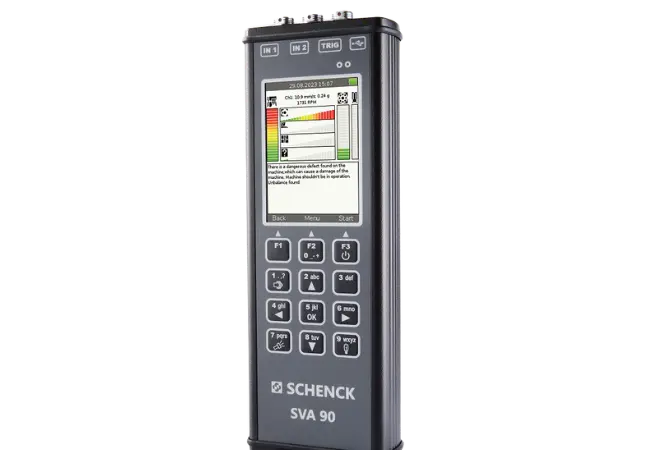

3-channel vibration analyzer: SVA 90 is ideal for efficient, fast, and accurate data acquisition of vibrations and machine conditions.

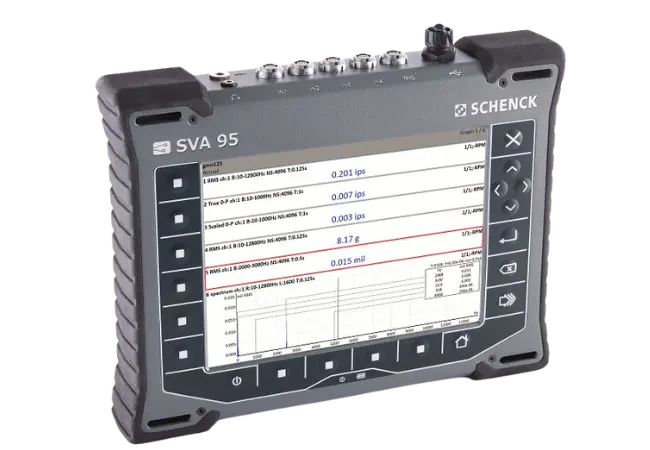

4-channel vibration analyzer with an impressive range of features: The SVA 95 is a powerful, portable device for performing vibration analysis and field balancing with capability to support advanced balancing up to 8 planes for fast, easy route-based data collection, and monitoring the condition of machines.

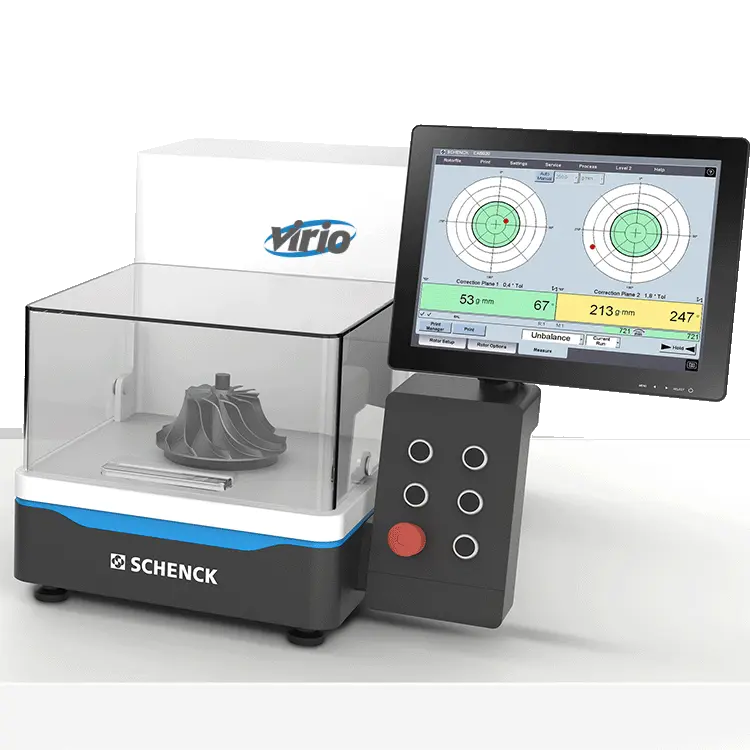

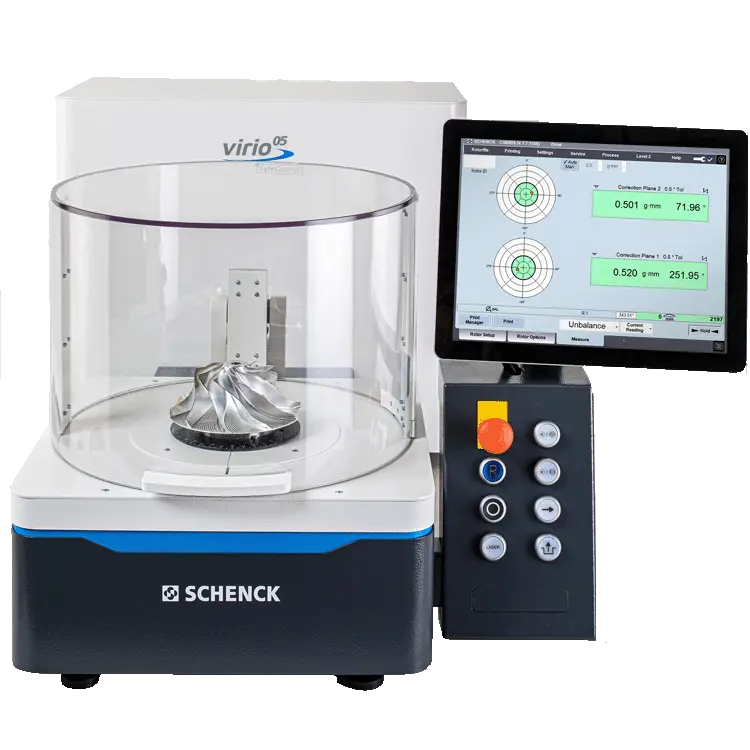

The Virio 05 is the expert for small, lightweight rotors such as vertical fans, pump impellers, compressors, tools, or flywheels weighing up to 500 grams. It is your flexible partner in the workshop and laboratory, in the repair sector, or even in small-batch production. All control buttons are clearly arranged and easily accessible.

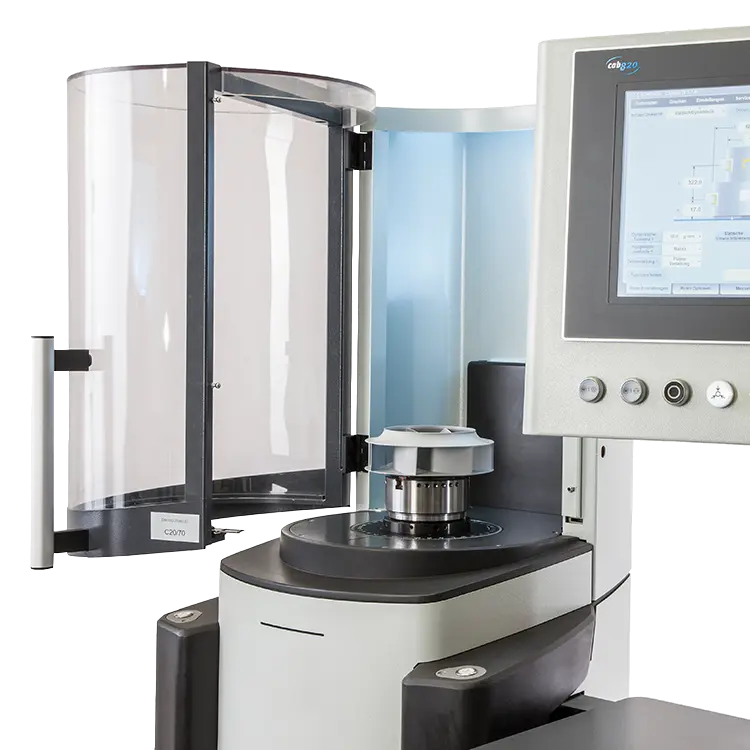

Just as compact as it is precise: Virio 15 is the ideal choice for balancing disc-shaped or pot-shaped workpieces such as flywheels and pulleys, pump impellers, fans, and transmission components weighing up to 15 kg and with a diameter of up to 400 mm.

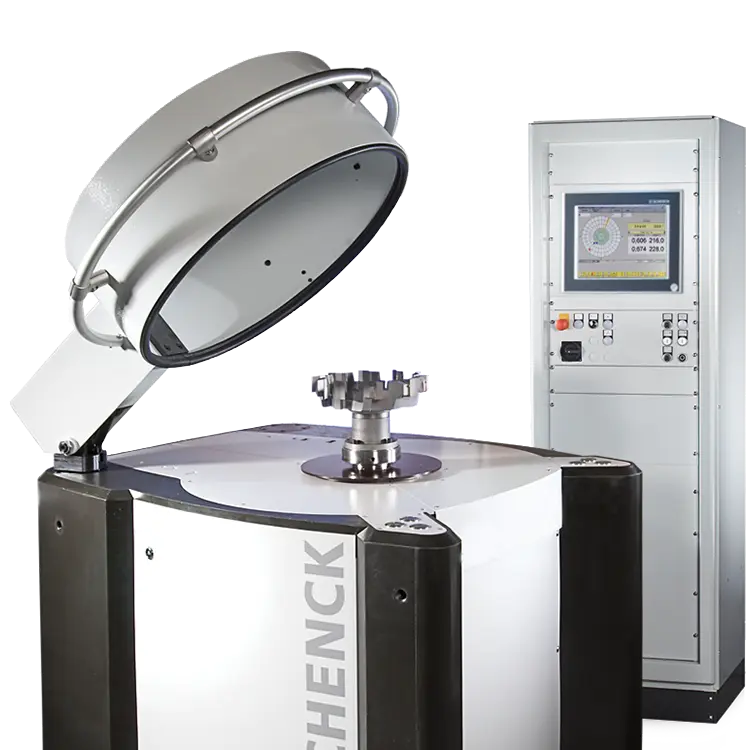

Whether in workshops and repair shops or in series production: Virio 10, Virio 50, Virio 100, and Virio 300 are high-precision balancing machines for a wide range of rotors up to 300 kg. All models can be set up directly on the workshop floor without a foundation, quickly put into operation, and just as quickly relocated.

Our vertical, force-measuring balancing machines for engine components are characterized by permanent calibration, enabling fast and efficient operation. The V 2 L – V 40 L series allows balancing in one or two planes. The VE 2 L – VE 5 L series is ideal for rotors that only need to be balanced in one plane.

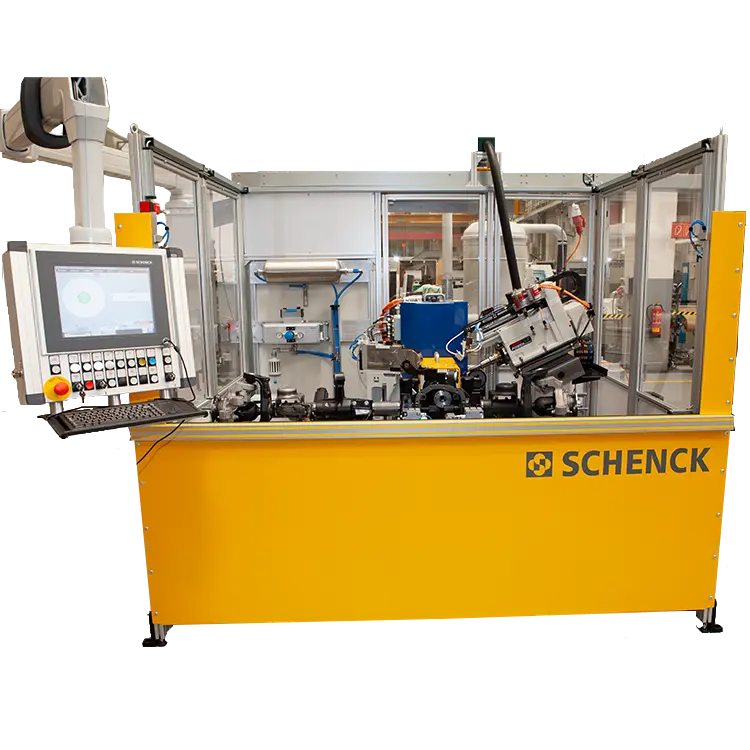

The SBAL balancing machine for axle drives is a production line-capable solution with fully automatic unbalance correction. It is specially designed for the efficient measurement and precise correction of unbalance in front and rear axle transmissions. The measurement is performed between 1000-3500 min-¹, depending on the axle type, to ensure accurate results and minimise stress on the system. With this technology, up to 80 axle drives can be produced per hour, ensuring high productivity and efficiency.

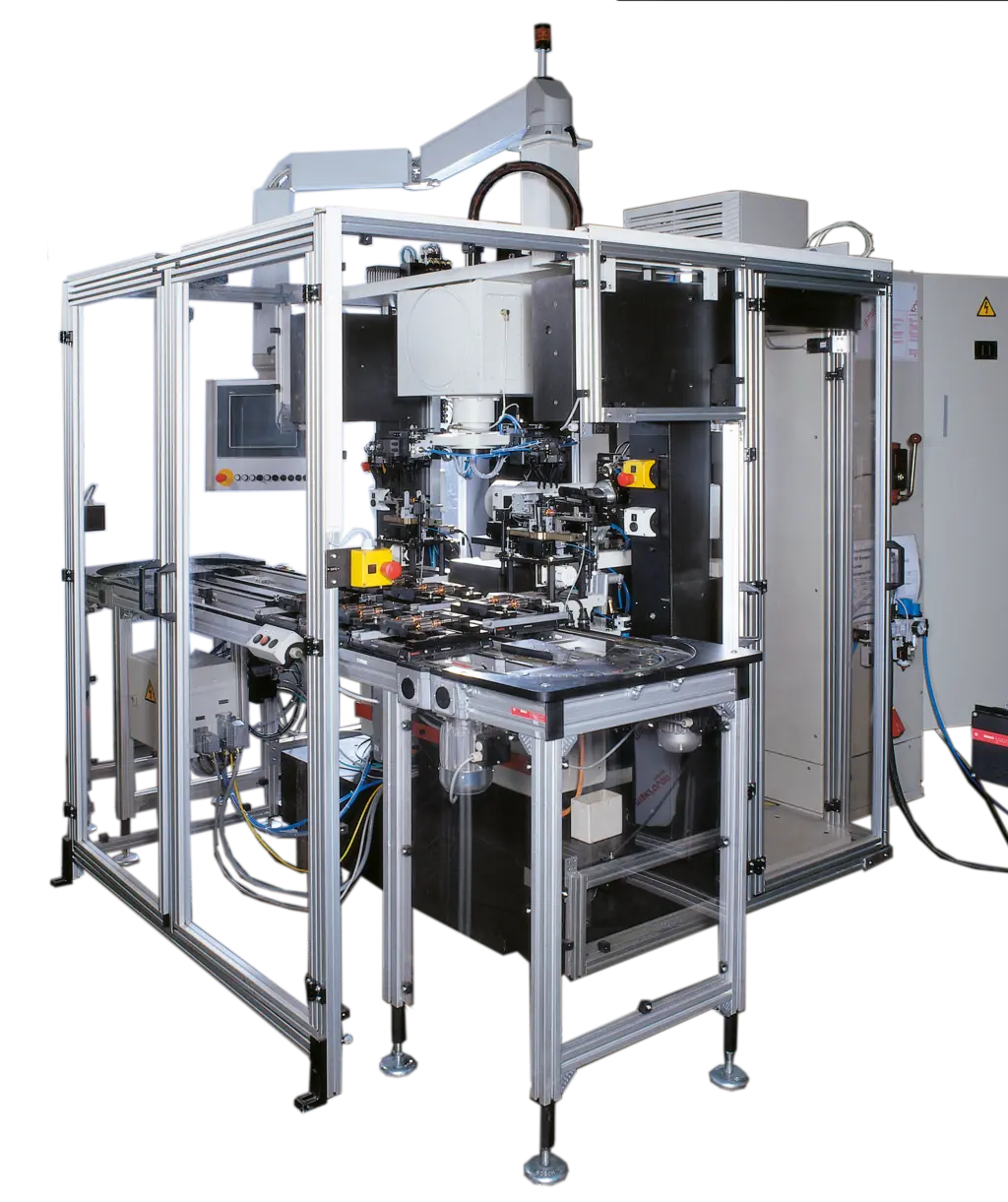

Ideal for use in high-volume production lines: The KBTU series offers 4-station machines or 6-station machines with a fully automatic function sequence for measuring and correcting the unbalance of electric armatures in various designs and sizes. The unbalance is corrected by milling (profile/polar/slot milling or drilling) in one or two planes. The machine essentially consists of the transfer station to the on-site feeder system, measuring station, common correction station level 1 / level 2, measuring station for audit check, internal pick-and-place lifting and turning transport, as well as the electrical control cabinet and protective device.
