SmartBalancer ECO
On-site dynamic balancing of assembled machines in three steps: Measurement, Correction, Check Run.
Field Balancing at its core Easy, fast, reliable
Alarming high rates of failures, over 50% are caused by unbalances in the rotors resulting in mechanical vibrations, leading to premature bearing failures, shaft deformation etc. Such unbalances can be easily diagnosed as well as corrected with the help of “SmartBalancer Eco”

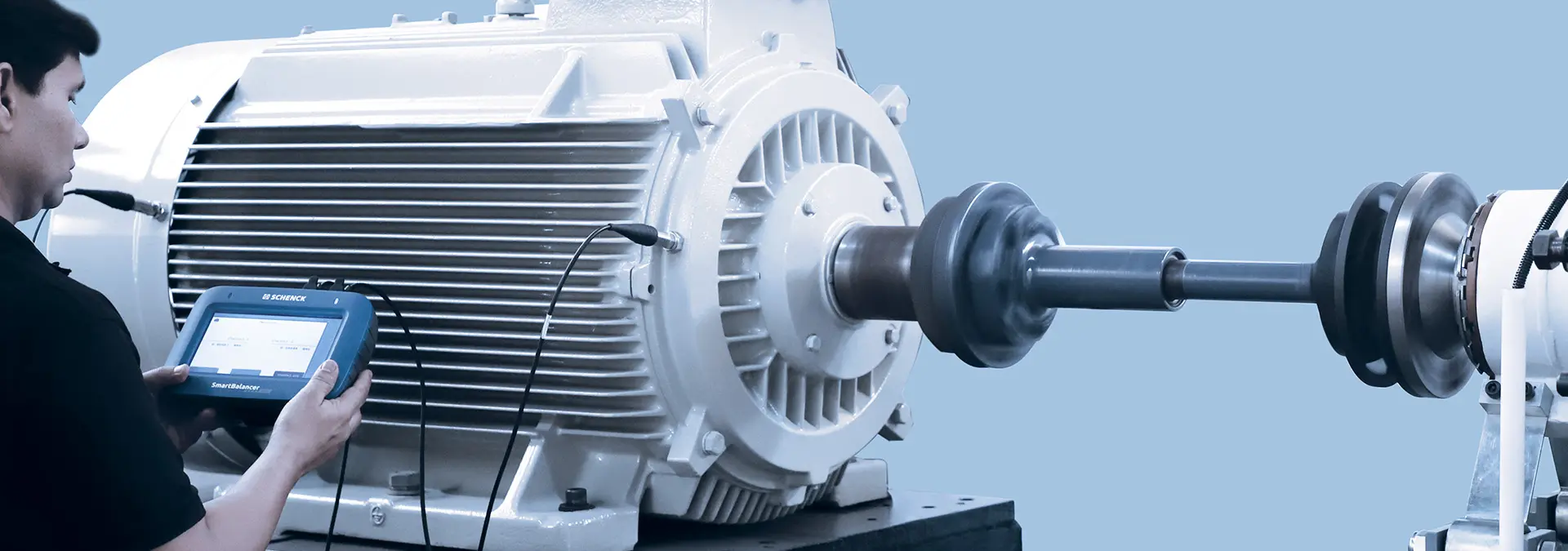

The SmartBalancer ECO offers its customers a valuable on-site balancing service and is ideally suitable for commissioning, servicing and maintenance of machines and systems. The dynamic balancing performed on completely assembled equipment in Operating Condition also compensates for assembly tolerances. The procedure runs in three stages i.e. Measurement, Correction and Check Run.
Advantages at a glance
Measurement channels
2 Simultaneous Measuring Channels
Vibration Metrics
Measurement of overalls and frequency analysis
Easy Balancing
Complete package for field balancing in easy to carry soft case
Visualization
Easy operation with Touch Screen and user guidance
Data storage
Storage of data and influence coefficients
Documentation
PS Software for reporting and data archiving
Get started with the easy balancing package

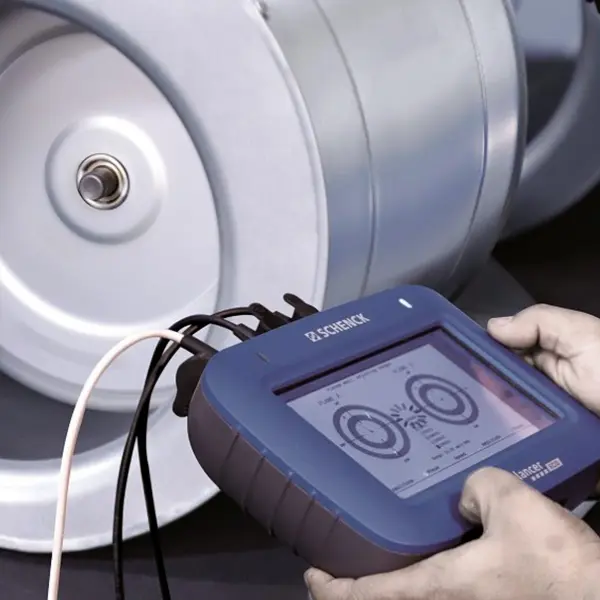

Reliable Balancing Made Easy The SmartBalancer ECO is a cost-effective alternative to the SmartBalancer 4, which was specially designed for simple balancing tasks. This device is equipped with all the necessary functions to ensure accurate and efficient balancing during operation without compromising on quality and know-how. With its intuitive and user-friendly interface, the SmartBalancer ECO is easy to use and delivers reliable results every time. Whether you're a professional mechanic or a technician, the SmartBalancer ECO is the right choice for you.

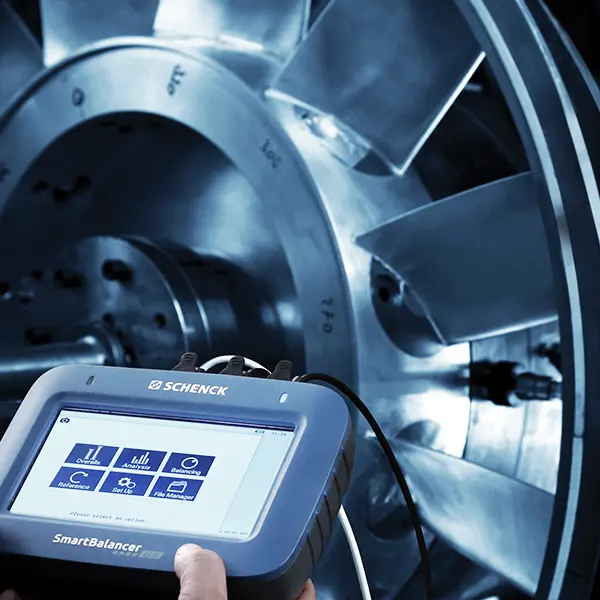

Simplify your work processes with outstanding ease of use The SmartBalancer ECO gives you comprehensive control and handling in one hand. All of the device's functions can be controlled easily and intuitively via the touchscreen display, even by inexperienced users. The clear color display with easy-to-understand pictograms and the clear file structure are based on the familiar Windows interface. This makes the SmartBalancer ECO an efficient and practical tool for real-time detection of imbalances during operation.
Technical data Information on performance characteristics and specifications
Operating modes
- Balancing in 1 or 2 planes tracking filter
- Amplitude/phase/speed Overalls 2 to 1000Hz, 10 to 1000Hz
- Spectra (FFT) up to 1000 lines, up to 0,1Hz resolution averaging automatic peak list
- Reference Display of reference signal and speed
Measurement
- 2 channels for simultaneous measurement of vibration acceleration of velocity (built-in integration) display of results as peak, RMS, peak calc.
- 1 channel for optical reference sensor
Field Balancing
- Speed range: 120 to 30000 rpm
- Correction planes: 1 or 2
- Unbalance correction polar / fixed locations
Easy setup
- Dialogue-assisted user guidance
- Polar display of measured vibrations
- Calculator for test mass proposal
- Storage of influence coefficients
- Trim balancing and repeat balancing
Operator interface
- 7''-color touchscreen; backlight (800 X 480 pixels)
Data processing
- Storage in instrument
- Measured data Instrument adjustments
- Balancing data up and download to PC via USB
Power
- Minimal operating time 8 hours
- Rechargeable battery (Li-ion)
- Continous display of battery status
- In-device charging
Mechanical & Environment
- Weight: 1,15 kg (2,55 lb)
- Dimensions (L X B X H) 215 X 150 X 60 mm³ (8,5 X 5,9 X 2,4 inches³)
- Protection class: IP65, dust and splash protected
- Temperature: 10 to 50°C (14 to 122°F)
Software EcoSmart
- Up and download of data to the instrument
- Archiving and printing of data
- Formating of data
- Balancing reports
Environment
- Protection class: IP 65, dust-proof and spray water-protected
- Operational Temperature range: -10 °C to 50 °C (14 °F to 122 °F)
- Storage: -20 °C to 60 °C (-4 °F to 140 °F)

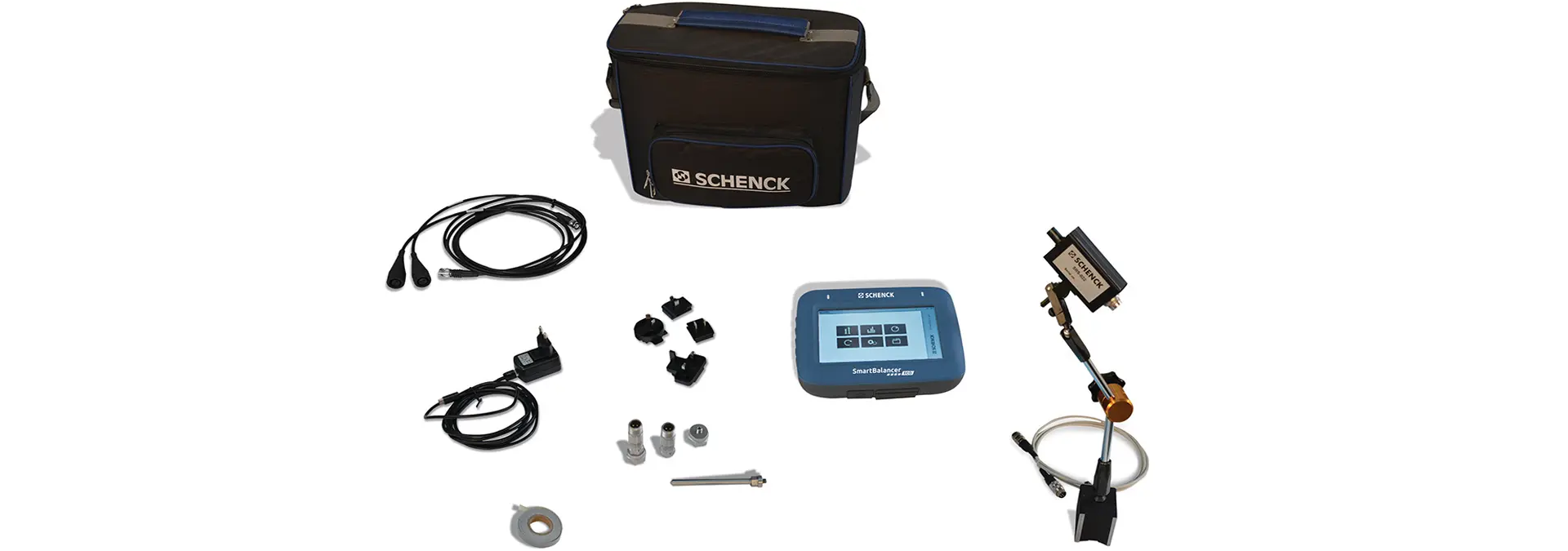

Scope of delivery Everything you need with comprehensive accessories for immediate use
1 SmartBalancer ECO Standard measuring device
- with rechargeable battery
2 acceleration sensors (100 mV/g)
1 optical reference pickup (Class A laser)
2 reare earth magnetic bases for vibration sensors
1 straight probe for handheld measurements
Cable equipment with
- 2 connection cables for sensors (2m)
- 2 connection cables for sensors (5m)
- 1 connection cable for optical sensor (1,8m)
- 1 extension cable for optical sensor (5m)
Magnetic stand for optical sensor
1 charging unit with adapter attachments
1 carrying bag for measuring device and accessories with
- 1 shoulder strap
- 1 hand strap
Downloads
Search query for possible device updates Use your device's serial number for this, e.g., SVA90-123456.
